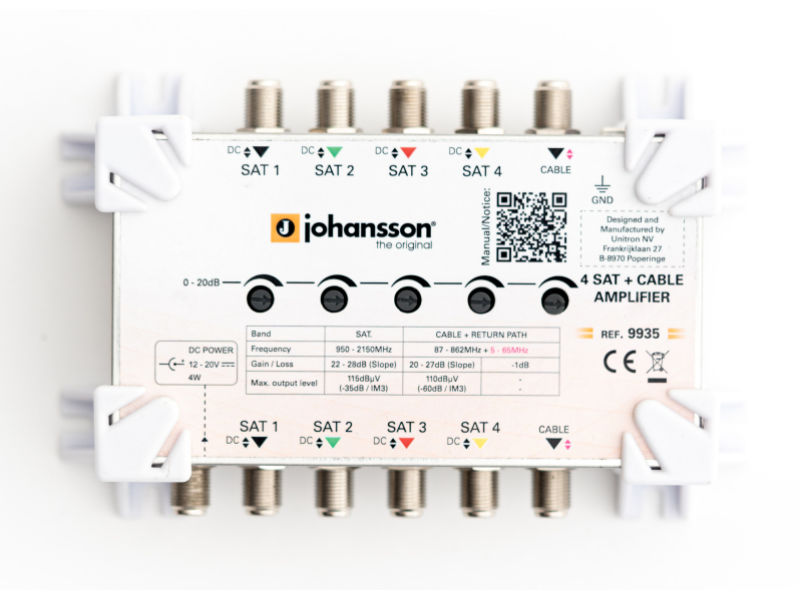

JOHANSSON Amplifier x4 SAT + 1 TERR

5 lines Amplifier 4x SAT + 1x Cable. F-con DC Powered.

Main features:

• Separate adjustment for gain on every line
• Fixed pre-slope for satellite and cable
• DC input (F-con) for powering trunk line amplifiers & LNB
• Inputs : 4 SAT + 1Terr ‘CABLE’ (inc. return path)
• Outputs: 5
• Frequency range MHz: SAT 950-2300 MHz / TERR 87-862 (+ 5-65MHz return path)
• Gain dB: SAT 22-28dB (sloped) / TERR.: 87-862 MHz : 20-27dB (sloped)
• Return path: -1dB
• Noise figure dB: SAT 5 / TERR 6
• Gain adjustment dB: SAT 20 / TERR 20
• Max. Output level dBµV: SAT 115 dBµV* / TERR 110 dBµV ** / RP: passive 87-862 MHz
• Consumption - 4W From 12 - 20VDC external power supply or input / output
• Dimensions mm: 58 x 102 x 51
• -35dB/IM3

** -60dB/IM3
