Description

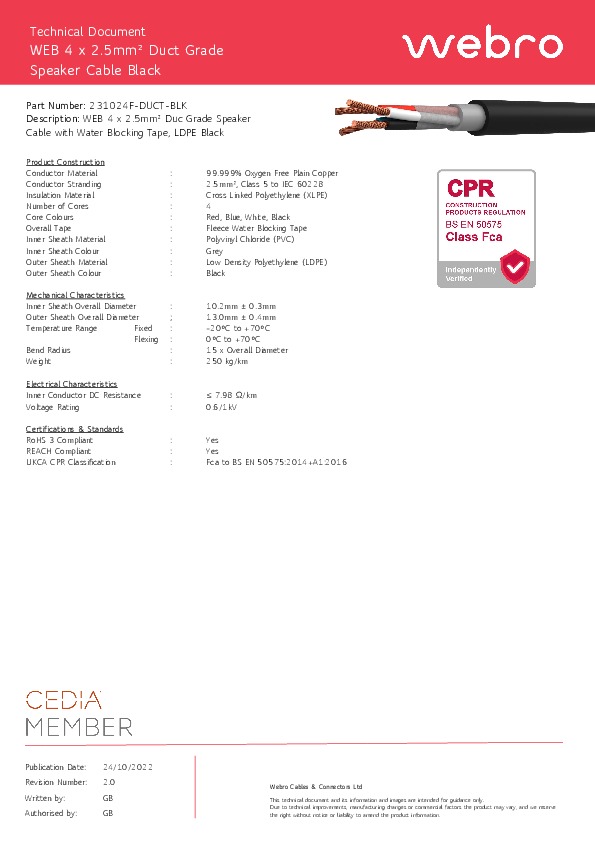

WEB 4 x 2.5mm² Duc Grade Speaker Cable with Water Blocking Tape, LDPE Black
Product Construction
- Conductor Material: 99.999% Oxygen Free Plain Copper
- Conductor Stranding: 2.5mm², Class 5 to IEC 60228
- Insulation Material: Cross Linked Polyethylene (XLPE)
- Number of Cores: 4
- Core Colours: Red, Blue, White, Black
- Overall Tape: Fleece Water Blocking Tape
- Inner Sheath Material: Polyvinyl Chloride (PVC)
- Inner Sheath Colour: Grey
- Outer Sheath Material: Low Density Polyethylene (LDPE)
- Outer Sheath Colour: Black
Mechanical Characteristics
- Inner Sheath Overall Diameter: 10.2mm ± 0.3mm
- Outer Sheath Overall Diameter: 13.0mm ± 0.4mm
- Temperature Range: Fixed -20°C to +70°C / Flexing 0°C to +70°C
- Bend Radius: 15 x Overall Diameter
- Weight: 250 kg/km
Electrical Characteristics
- Inner Conductor DC Resistance: ≤ 7.98 Ω/km
- Voltage Rating: 0.6/1kV
Certifications & Standards
- RoHS 3 Compliant: Yes
- REACH Compliant: Yes
- UKCA CPR Classification: Fca to BS EN 50575:2014+A1:2016
