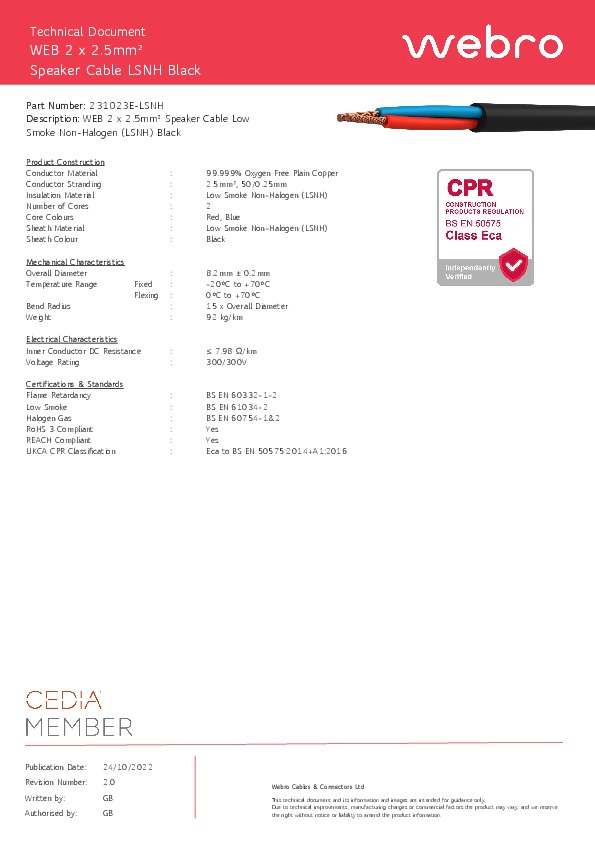

Description
WEB 2 x 2.5mm² Speaker Cable Low Smoke Non-Halogen (LSNH) Black
Product Construction
- Conductor Material: 99.999% Oxygen Free Plain Copper
- Conductor Stranding: 2.5mm², 50/0.25mm
- Insulation Material: Low Smoke Non-Halogen (LSNH)
- Number of Cores: 2
- Core Colours: Red, Blue
- Sheath Material: Low Smoke Non-Halogen (LSNH)
- Sheath Colour: Black
Mechanical Characteristics
- Overall Diameter: 8.2mm ± 0.2mm
- Temperature Range: Fixed -20°C to +70°C / Flexing 0°C to +70°C
- Bend Radius: 15 x Overall Diameter
- Weight: 92 kg/km
Electrical Characteristics
- Inner Conductor DC Resistance: ≤ 7.98 Ω/km
- Voltage Rating: 300/300V
Certifications & Standards
- Flame Retardancy: BS EN 60332-1-2
- Low Smoke: BS EN 61034-2
- Halogen Gas: BS EN 60754-1&2
- RoHS 3 Compliant: Yes
- REACH Compliant: Yes
- UKCA CPR Classification: Eca to BS EN 50575:2014+A1:2016
