JOHANSSON Amplifier PROFINO REVOLUTION +

Programmable Filter/Amp
4 In 20 Clusters 45dB 115dBµV
2 Year Warranty

SKU: 6711UK

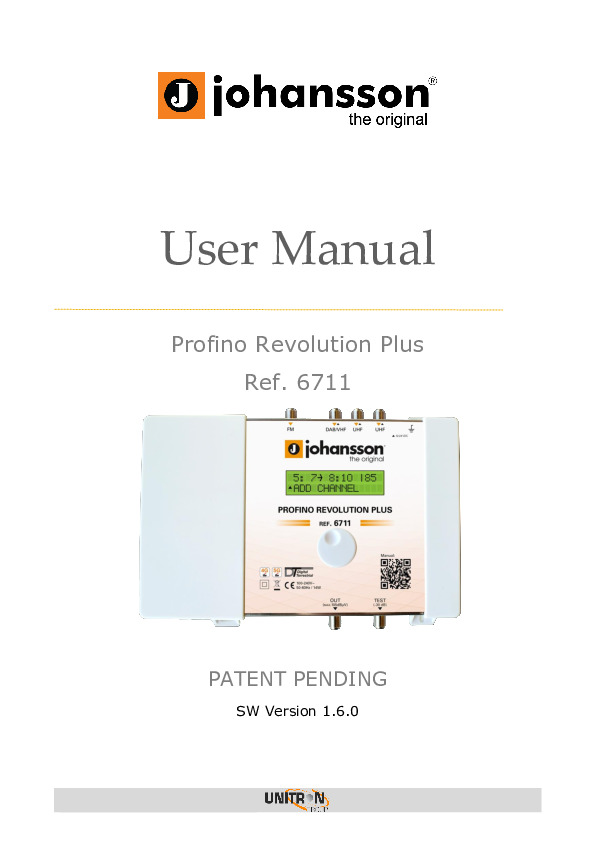

  Product Documents

JOHANSSON Amplifier PROFINO REVOLUTION +

Programmable Filter/Amp
4 In 20 Clusters 45dB 115dBµV
2 Year Warranty


Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Muxes / AGC / 12-24 V remote power. The Profino Revolution Plus is a light version digital Profiler. The 6711 has 1 FM, 1 DAB/VHF and 2 UHF inputs. > 50 Channels can be filtered, amplified and converted. The filters on adjacent channels are extremely sharp.

Main features:

  • Read-out of input level strength: no need for field strength meter
  • Can process up to 20 channels
  • Sharpest filters on the market (50dB on adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Flex Matrix: complete flexibility in assigning filters from any input
  • Easy to install
  • RED compliant(selectivity classification 0 – 1 – 2 – 3 – 4)
  • Equalize and optimize terrestrial signals for your optical installation (70 dBµV output power is optimal: you might use the test port (-30dB))
  • Inputs: 1 FM + 1 DAB/VHF + 2 UHF
  • Outputs: 1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB)
  • Frequency range (MHz): FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862
  • LTE protection (MHz): Automatic selection: 694, 790 or OFF
  • Input level (dBµV): FM: 37 - 77 VHF: 45* - 109 UHF: 45* - 109
  • FM output power (60dB/IM3) (dBµV): 113
  • VHF/UHF output power (60dB/IM3) (dBµV): 114
  • VHF/UHF output power (36dB/IM3) dBµV: 125
  • VHF/UHF output power with 1 MUX (dBµV): 108
  • VHF/UHF output power with 6 MUX (dBµV): 107
  • Number of channels: More than 50 (15 filters)
  • Add channels: Per 1, 2, 3, 4, 5 or 6 MUXes
  • Conversion: from any VHF to any VHF channel / from any UHF to any UHF channel
  • Gain (dB): FM: 35 VHF: >60 UHF: > 60
  • Gain adjustment (dB): FM: 20 VHF/UHF: Channel AGC
  • General attenuator (dB): 20
  • Selectivity (dB/1MHz): 35
  • Return Loss (dB): 10
  • Output MER (dB): VHF: >35 UHF:> 35
  • ESD protection: All inputs
  • DC @ VHF/UHF input (V): 12 or 24
  • DC Load current @ VHF/UHF input (mA): 100 (total for the 3 inputs)
  • Operating temperature (°C): -5 to +50
  • Power Supply (V): 100-240
  • Power Consumption (W): 12
  • Dimensions (mm): 217 x 165 x 59
  • Weight (kg): 0,8
  • For 64QAM with code rate 3/4
