Terrestrial Cascade 5 In 4 Out dSCR/Legacy
(May require a PSU: 2460UK)*Sky Compatible
*Special Order! NCNR - Check Lead Time*
SKU: 9754A
Terrestrial Cascade 5 In 4 Out dSCR/Legacy
(May require a PSU: 2460UK)*Sky Compatible
*Special Order! NCNR - Check Lead Time*

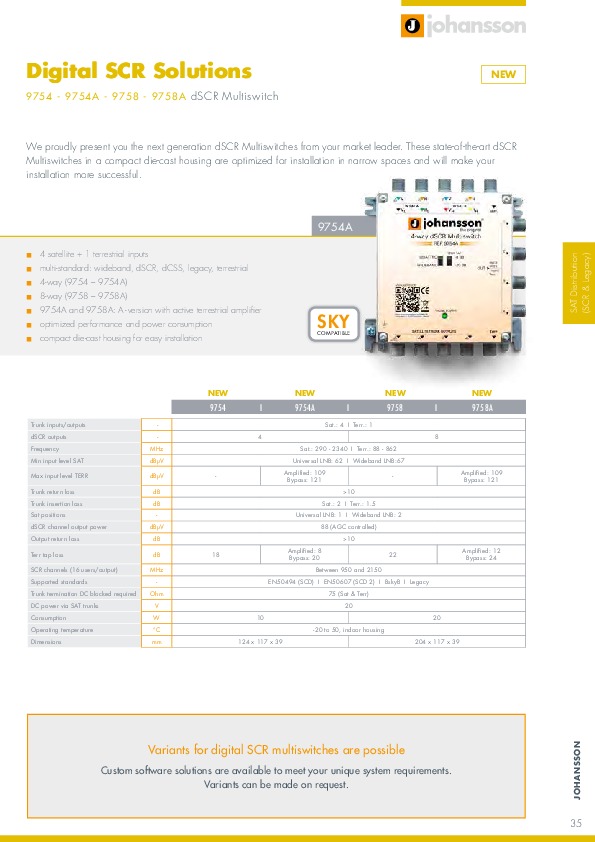

State-of-the-art dSCR Multiswitch in a compact die-cast housing, optimised for installation in narrow spaces.
Main features:
Specifications:
Trunk inputs/outputs: SAT: 4 / TERR: 1
dSCR Outputs: 4
Frequency MHz: SAT: 290 - 2340 / TERR: 88 - 862
Min. input level SAT dBµV: Universal LNB: 62 / Wideband LNB: 67
Max. input level TERR dBµV: Amplified: 109 / Bypass: 121
Trunk return loss dB: >10
Trunk insertion Loss dB: SAT: 2 / TERR: 1.5
SAT positions: Universal LNB: 1 / Wideband LNB: 2
dSCR channel output power dBµV: 88 (AGC controlled)
Output return loss dB: >10
TERR tap loss dB: Bypass: 20 / Amplified: 8
SCR channels (16 users/output) MHz: Between 950 and 2150
Supported standards: EN 50494 (SCD) / EN 50607 (SCD 2) / BSKYB / Legacy
Trunk termination DC block required Ohm: 75 (Sat & Terr)
DC power via SAT trunks V: 20
Consumption W: 10
Operating temperature °C: -20 to +50 (indoor housing)
Dimensions mm: 124 x 117 x 39
