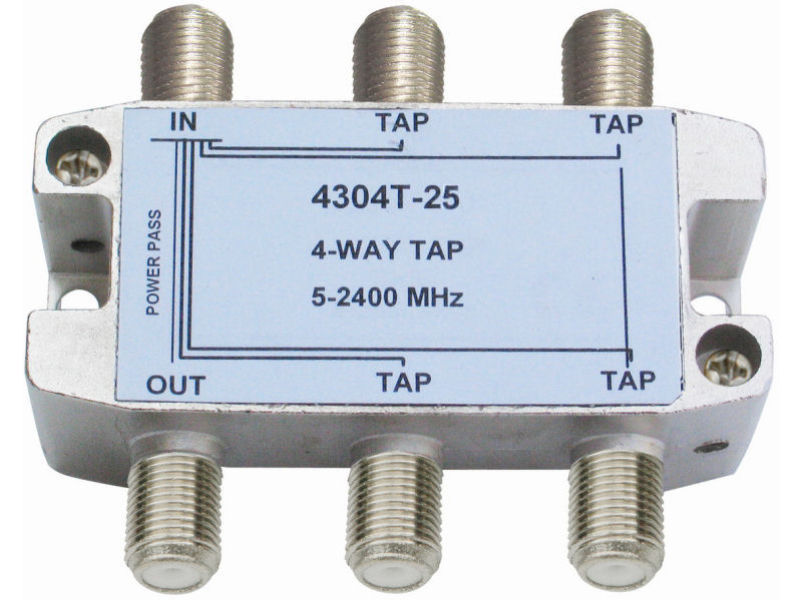

INTERNAL 4-25 F Type Tap (5-2400MHz)

• Zinc Die-Cast housing with Nickel Plating
• F-(f) connector
• 75 ohm
• Grounding terminal provided
• Two screws attached
• Output port - input port power pass: max. 1A, 30V
• Frequency range 5-2400MHZ

Screening factor
30-300 MHz > 75dB
300-470 MHz > 75dB
470-1000 MHz > 65dB
1000-2400 MHz > 55dB
Insertion Loss (dB) IN-OUT
5-40 MHz: < 1.2
40-470 MHz: < 1.2
470-1000 MHz: < 1.2
1000-1750 MHz: < 1.5
1750-2050 MHz: < 2.0
2050-2400 MHz: < 2.5
Tap Loss (dB) IN-TAP
5-40 MHz: 25 +/- 1.5
40-1000 MHz: 25 +/- 1.5
1000-2050 MHz: 25 +/- 2.0
2050-2400 MHz: 25 +/- 2.2
Reverse Isolation (dB) OUT-TAP
5-40 MHz: > 45
40-470 MHz: > 32
470-1000 MHz: > 28
1000-1750 MHz: > 25
1750-2050 MHz: > 25
2050-2400 MHz: > 25
Mutual Isolation (dB) TAP-TAP
5-40 MHz: > 19
40-470 MHz: > 22
470-1000 MHz: > 22
1000-1750 MHz: > 22
1750-2050 MHz: > 20
2050-2400 MHz: > 19
Return Loss (dB) IN-OUT-TAP
5-40 MHz: > 12
40-470 MHz: > 12
470-1000 MHz: > 11
1000-1750 MHz: > 10
1750-2050 MHz: > 10
2050-2400 MHz: > 10
