HDL Master Curtain Control Motor

The single channel HDL-MWM765 series curtain controllers contain both master and slave modules and have manual control and overheat protection. The curtain controller is able to be managed via BUS pro and supports easy programming and percentage control functionality.

Protected:
Protection is ensured through using overload protection and over-heat protection. These features safeguard the curtain modules.

Silent:
The sound of silence is priceless, and the HDL-MWM65B.12 thanks to its new generation clutch and planetary reducer gears operate at a barely audible 40db. This equates to a virtually silent automated curtain solution that does not disturb or distract.

Powerful:
One HDL-MWM65B.12 module can pull with a force of 8Kg, and move a curtain weighing a massive 50Kg. When combined with another curtain motor a curtain weighing 80Kg can be moved with ease. This enormous power guarantees the smooth opening and closing of even the heaviest curtains.

Functions:

• The distance testing of the curtain
• Manual mode: long drag, short drag, drag no action
• Percentage control
• Control by HDL Buspro
• Supports HDL Buspro online upgrading
• Supports easy programming
• Built-in new generation clutch, precise planetary reduce, noise level 40dB
• Suitable for all small to medium-scale curtain applications, linear and arched, one-and two-side opening

Electric Parameters:

• Type: MWM65B.12 (Master); MWM70S.12 (Slave)
• Rated voltage: AC220V 50Hz
• Voltage range: AC220V�20% 50HZ
• Working voltage: DC24V(Master); DC12V(Slave) from Master
• Bus power Consumption: 40mA/DC24V (Master); 33mA/DC12V (Slave)

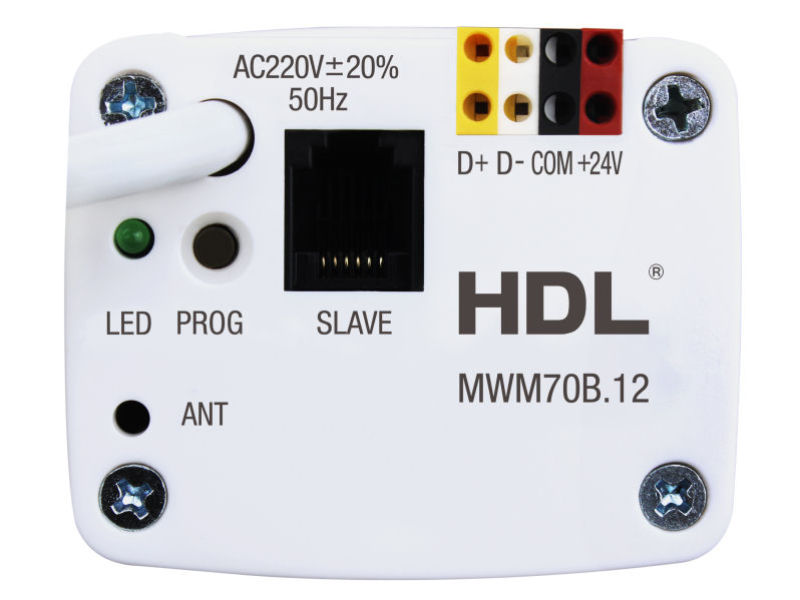

• Slave interface: 6P network port
• Rated power: 70W
• Rated torque: 1.0Nm
• Rated speed: 112rpm
• Rail belt speed: 16cm/s
• Communication interface: HDL Buspro (Master)

Approved:

• CE
• RoHS

Production Information:

• Dimensions: 284�70�50(mm)
• Weight: 1554g(master); 1543g(slave)
• Housing material: ABS, aluminum
• Installation: Wall Hanging
• Protection degree: IP41
• Insulation degree: E
