HDL Ceiling Mounted Sensor (5in1) Wireless

(Ultrasonic PIR LUX 5A Relay + UV Switch)
95mm x38mm c/w Dual Logic
*Special Order! NCNR - Check Lead Time*

SKU: HDL-MSPU05-RF.1C

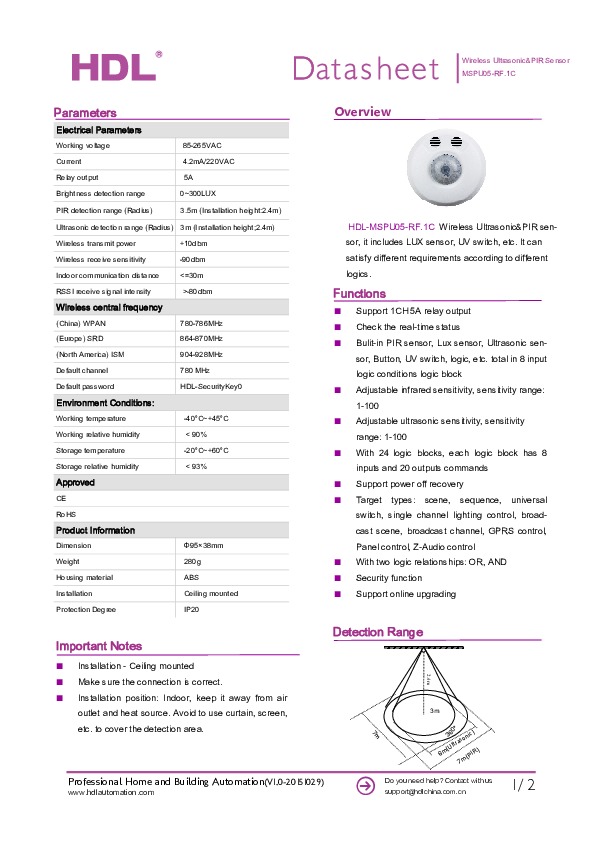

  Product Documents

HDL Ceiling Mounted Sensor (5in1) Wireless

(Ultrasonic PIR LUX 5A Relay + UV Switch)
95mm x38mm c/w Dual Logic
*Special Order! NCNR - Check Lead Time*


The HDL-MSPU05-RF.1C is a Wireless Ultrasonic & PIR sensor, it includes LUX sensor, UV switch, etc. It can satisfy different requirements according to different logics.

Functions:

  • Support 1CH 5A relay output
  • Check the real-time status
  • Bulit-in PIR sensor, Lux sensor, Ultrasonic sensor, Button, UV switch, logic, etc. total in 8 input logic conditions logic block
  • Adjustable infrared sensitivity, sensitivity range: 1-100
  • Adjustable ultrasonic sensitivity, sensitivity range: 1-100
  • With 24 logic blocks, each logic block has 8 inputs and 20 outputs commands
  • Target types: scene, sequence, universal switch, single channel lighting control, broadcast scene, broadcast channel, GPRS control, Panel control, Z-Audio control
  • With two logic relationships: OR, AND
  • Security function
  • Support online upgrading

Electrical Parameters:

  • Working voltage: 85-265VAC
  • Current: 4.2mA/220VAC
  • Relay output: 5A
  • Brightness detection range: 0~300LUX
  • PIR detection range (Radius): 3.5m (Installation height:2.4m)
  • Ultrasonic detection range (Radius) :3m (Installation height;2.4m)
  • Wireless transmit power: +10dbm
  • Wireless receive sensitivity: -90dbm
  • Indoor communication distance: <=30m
  • RSSI receive signal intensity: >-80dbm

Wireless central frequency:

  • (China) WPAN 780-786MHz
  • (Europe) SRD 864-870MHz
  • (North America) ISM 904-928MHz
  • Default channel 780 MHz
  • Default password HDL-SecurityKey0

Approved:

  • CE
  • RoHS

Product Information:

  • Dimension: Φ95×38mm
  • Weight: 280g
  • Housing material: ABS
  • Installation: Ceiling mounted
  • Protection Degree: IP20
