HDL 4CH Wireless Ballast Dimming Actuator

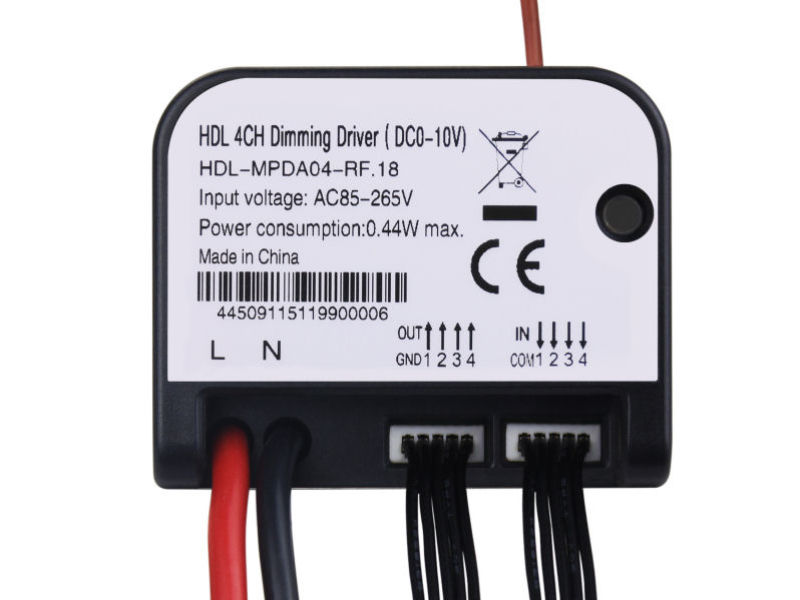

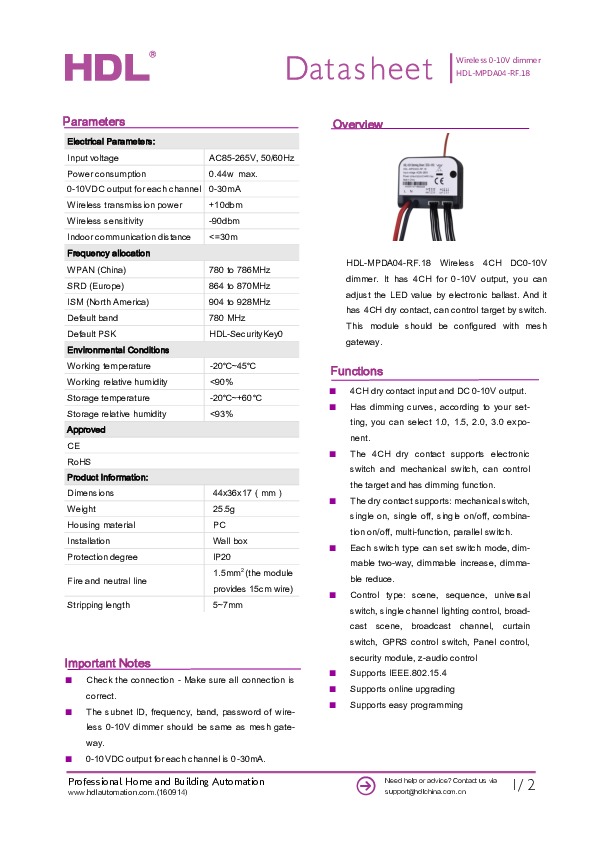

The HDL-MPDA04-RF.18 Wireless 4CH DC0-10V dimmer has 4CH for 0-10V output, you can adjust the LED value by electronic ballast. And it has 4CH dry contact, can control target by switch. This module should be configured with mesh gateway.

Functions:

• 4CH dry contact input and DC 0-10V output
• Has dimming curves, according to your set-ting, you can select 1.0, 1.5, 2.0, 3.0 exponent
• The 4CH dry contact supports electronic switch and mechanical switch, can control the target and has dimming function
• The dry contact supports: mechanical switch, single on, single off, single on/off, combination on/off, multi-function, parallel switch
• Each switch type can set switch mode, dimmable two-way, dimmable increase, dimmable reduce
• Control type: scene, sequence, universal switch, single channel lighting control, broad-cast scene, broadcast channel, curtain switch, GPRS control switch, Panel control, security module, z-audio control
• Supports IEEE.802.15.4
• Supports online upgrading
• Supports easy programming

Electrical Parameters:

• Input voltage:AC85-265V, 50/60Hz
• Power consumption:0.44w max.
• 0-10VDC output for each channel:0-30mA
• Wireless transmission power:+10dbm
• Wireless sensitivity:-90dbm
• Indoor communication distance:<=30m

Frequency allocation:

• WPAN (China):780 to 786MHz
• SRD (Europe):864 to 870MHz
• ISM (North America):904 to 928MHz
• Default band:780 MHz
• Default PSK:HDL-SecurityKey0

Approved:

• CE
• RoHS

Product Information:

• Dimensions: 44x36x17 (mm)
• Weight: 25.5g
• Housing materials: PC
• Installation: Wall box
• Protection degree: IP20
• Fire and neutral line: 1.5mm2 (the module provides 15cm wire)
• Stripping length: 5~7mm
