GEOSYNC Wideband LNB for SKY Q

c/w Sky Compatible Bracket & Level

SKU: GW2LB

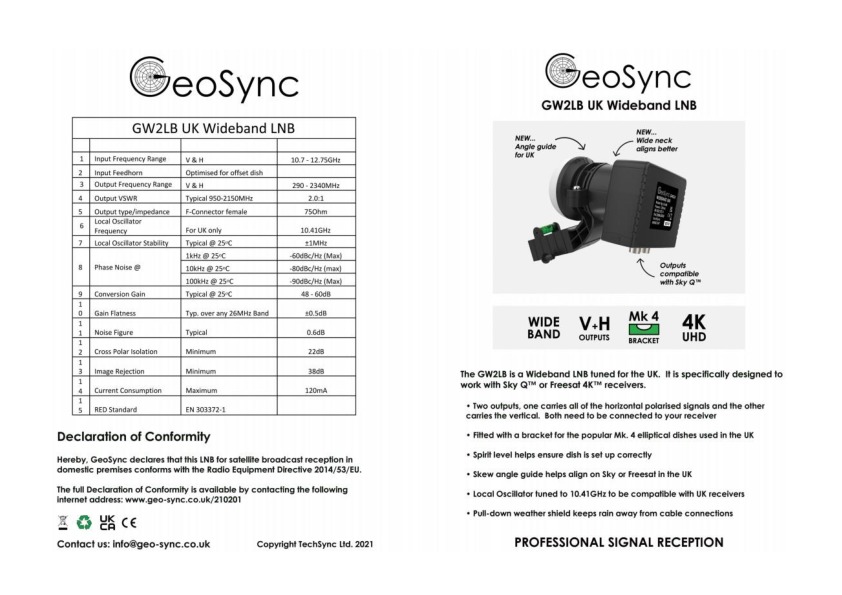

  Product Documents

GEOSYNC Wideband LNB for SKY Q

c/w Sky Compatible Bracket & Level


*Please note due to the LNB Holder depth this LNB is not compatible with Triax dishes *

The GeoSync GW2LB Wideband LNB has been specifically designed for use in the UK with a 10.41GHz Local Oscillator to make it compatible with both the Sky-Q and Freesat 4K receivers. The GW2LB has two outlets, one carrying all of the horizontally polarized signals and the other the vertical. Both outputs need to be connected to the receiver.

Main features:

  • Fitted with a bracket with spirit level for Mk. 4 elliptical dishes
  • Wide neck helps align at the focal point of the dish.
  • Skew angle guide helps align on Sky or Freesat in the UK
  • Signal quality improved with patent feedhorn design
  • Pull-down weather shield keeps rain away from cable connections

Input Frequency Range V & H 10.7 - 12.75GHz

Input Feedhorn: Optimised for offset dish

Output Frequency Range: V & H 290 - 2340MHz

Output VSWR: Typical 950-2150MHz 2.0:1

Output type/impedance: F-Connector female 75Ohm

Local Oscillator Frequency: For UK only 10.41GHz

Local Oscillator Stability: Typical @ 25ᵒC ±1MHz

Phase Noise @
1kHz @ 25ᵒC -60dBc/Hz (Max)
10kHz @ 25ᵒC -80dBc/Hz (max)
100kHz @ 25ᵒC -90dBc/Hz (Max)

Conversion Gain: Typical @ 25ᵒC 48 - 60dB

Gain Flatness: Typ. over any 26MHz Band ±0.5dB

Noise Figure: Typical 0.6dB

Cross Polar Isolation: Minimum 22dB

Image Rejection:Minimum 38dB

Current Consumption: Maximum 120mA

RED Standard: EN 303372-1
