GEOSYNC Universal Twin 40mm LNB

c/w Sky Compatible Bracket & Level

SKU: GK2LB

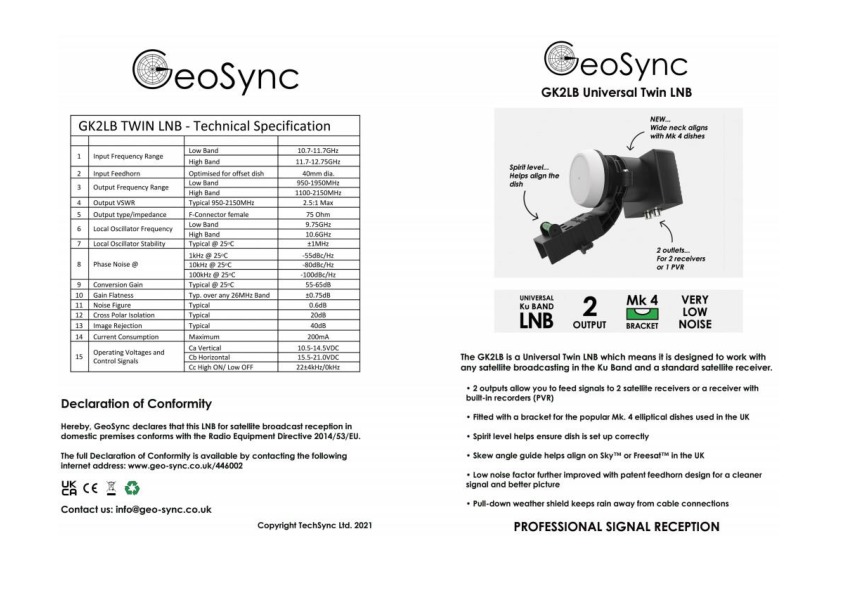

  Product Documents

GEOSYNC Universal Twin 40mm LNB

c/w Sky Compatible Bracket & Level


*Please note due to the LNB Holder depth this LNB is not compatible with Triax dishes *

Why pay for a Quad when a Twin would do the job? The GeoSync GK2LB is a Universal LNB with two outputs designed to work with any satellite broadcasting in the Ku Band and standard satellite receivers. Compatible with Sky-HD+, Sky+, Freesat HD+ and Freesat+ as well as European broadcasts in the Ku band.

Main features:

  • 2 outputs allow you to feed signals to up to 2 satellite receivers or a PVR
  • Fitted with a bracket with spirit level for Mk. 4 elliptical dishes
  • Wide neck helps align at the focal point of the dish.
  • Skew angle guide helps align on Sky or Freesat in the UK
  • Signal quality improved with patent feedhorn design
  • Pull-down weather shield keeps rain away from cable connections

Technical Specification:
Input Frequency Range: Low Band 10.7-11.7GHz / High Band 11.7-12.75GHz
Input Feedhorn: Optimised for offset dish 40mm dia.
Output Frequency Range: Low Band - 950-1950MHz / High Band -1100-2150MHz
Output VSWR: Typical 950-2150MHz- 2.5:1 Max
Output type / impedance: F-Connector female / 75 Ohm
Local Oscillator Frequency: Low Band 9.75GHz
High Band : 10.6GHz
Local Oscillator Stability: Typical @ 25ᵒC ±0.001GHz
Phase Noise: 1kHz @ 25ᵒC -55dBc/Hz / 10kHz @ 25ᵒC -80dBc/Hz / 100kHz @ 25ᵒC -100dBc/Hz
Conversion Gain: Typical @ 25ᵒC 55-65dB
Gain Flatness: Typ. over any 26MHz Band ±0.75dB
Noise Figure: Typical 0.6dB
Cross Polar Isolation: Typical 20dB
Image Rejection: Typical; 40dB
Current Consumption: Maximum 200mA
Operating Voltages and Control Signals:Ca Vertical 10.5-14.5VDC
Cb Horizontal: 15.5-20.0VDC
Cc High ON/ Low OFF: 22kHz/0kHz
