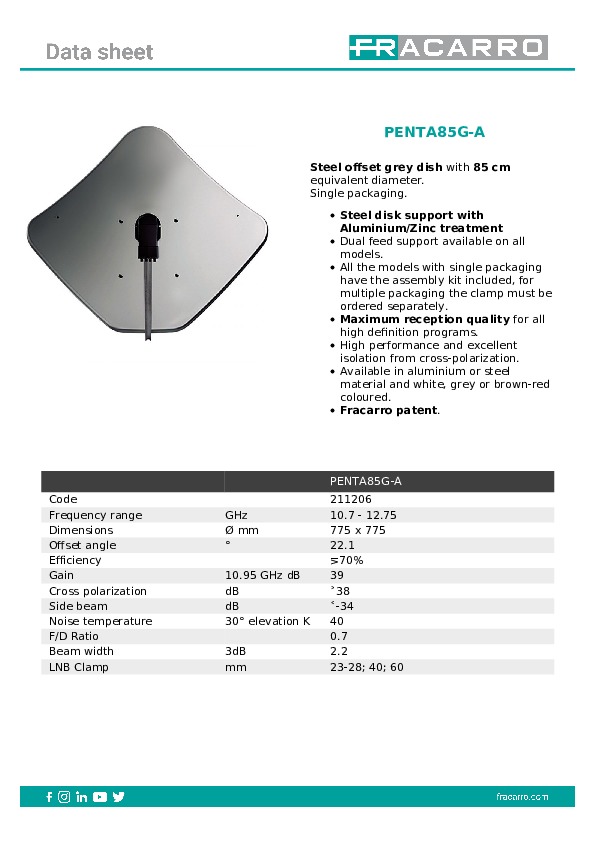

Steel offset grey dish with 85 cm equivalent diameter.
Main features:
- Steel disk support with Aluminium/Zinc treatment
- Dual feed support available on all models.
- All the models with single packaging have the assembly kit included, for multiple packaging the clamp must be ordered separately.
- Maximum reception quality for all high definition programs.
- High performance and excellent isolation from cross-polarization.
Frequency range GHz: 10.7-12.75
Dimensions Ø mm : 75x775
Offset angle °: 22.1
Efficiency: ≥70%
Gain at 10.95GHz dB: 39
Cross polarisation on axis dB: >38
Side beam dB: <-34
Noise temperature: 40°K at 30° elevation
F/D ratio: 0.7
Beamwidth (-3dB) : 2.2
LNB clamp mm: 23-28; 40; 60
Elevation angle: Maximum tilt 60
Material Alumium/steel
Bracket material Steel : aluminium zinc treatment
Wind load at 150Km/h Kg: 81
Dual feed dual feed 6°: DFP85 cod. 211001
Mounting kit: ZNC85 included
