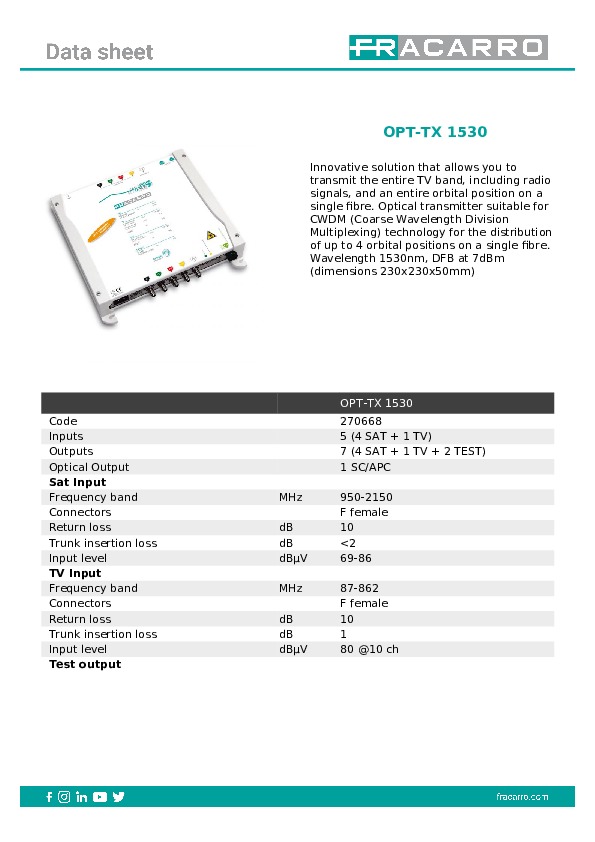

OPT-TX 1530
Innovative solution that allows you to transmit the entire TV band, including radio signals, and an entire orbital position on a single fibre. Optical transmitter suitable for CWDM (Coarse Wavelength Division Multiplexing) technology for the distribution of up to 4 orbital positions on a single fibre. Wavelength 1530nm, DFB at 7dBm (dimensions 230x230x50mm)
Description
Inputs: 5 (4 SAT + 1 TV)
Outputs: 7 (4 SAT + 1 TV + 2 TEST)
Optical Output: 1 SC/APC
Sat Input
Frequency band MHz: 950-2150
Connectors: F female
Return loss dB: 10
Trunk insertion loss dB: <2
Input level dBµV: 69-86
TV Input
Frequency band MHz: 87-862
Connectors: F female
Return loss dB: 10
Trunk insertion loss dB: 1
Input level dBµV: 80 @10 ch
Test output
Frequency band MHz: 87-862 / 950-2150
Connectors: F female
Return loss dB: 10
Test attenuation dBµV: 59 per channel
Optical Output
Connectors: SC/APC
WaveLength: 1530
Optical power dB: 6.5
Optical return loss dBµV: >45
Safety class: 1M
Features
Power supply Vac, Hz: 184-264, 50-60
Consumption W: 15
Remote feeding mA, V: 200, 14 (4 SAT connectors)
Operating temperature °C: -5 – +55
AGC Dynamic dB: 20
Leds dBµV: Red laser overcurrent
Standard conformity: CEI EN 50083-2 EN60065
Dimensions mm: 230x230x50
