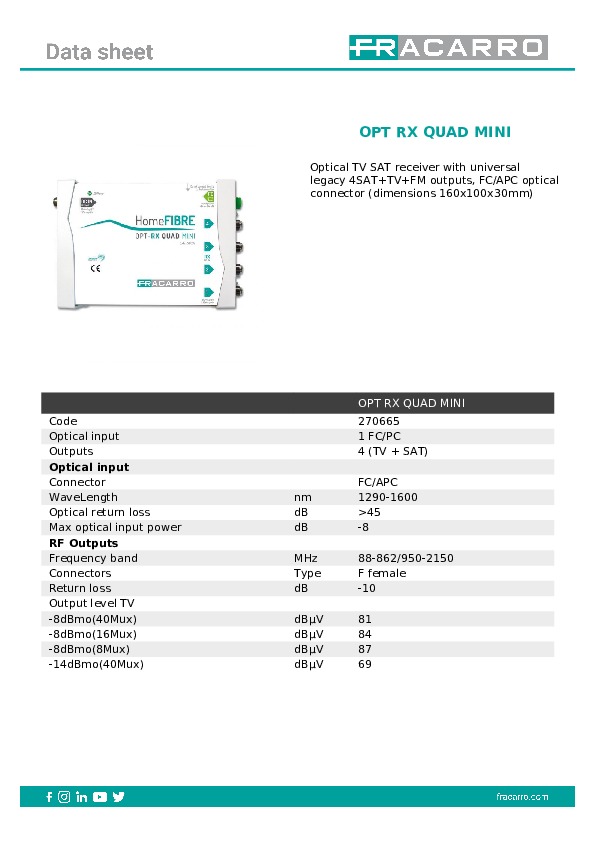

OPT RX QUAD MINI
Optical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, FC/APC optical connector (dimensions 160x100x30mm)
Description
Optical input: 1 FC/PC
Outputs: 4 (TV + SAT)
Optical input
Connector: FC/APC
WaveLengtj nm:1290-1600
Optical return loss dB: >45
Max optical input power dB: -8
RF Outputs
Frequency band MHz: 88-862/950-2150
Connectors Type: F female
Return loss dB: -10
Output level TV
-8dBmo(40Mux) dBµV: 81
-8dBmo(16Mux) dBµV: 84
-8dBmo(8Mux) dBµV: 87
-14dBmo(40Mux) dBµV: 69
-14dBmo(16Mux) dBµV: 72
-14dBmo(8Mux) dBµV: 75
Output level SAT
-8dBmo dBµV: 76
-14dBmo dBµV: 64
Features
Power supply: Vac/Hz
Consumption W: 3.5
Current consumption mA, V: 280, 12 190, 18
Power supply V: 14/18 on all outputs
Operating temperature °C: -5 – +50
Leds dBµV: Power status green LED
Standard conformity: CEI EN 50083-2 EN60065
Dimensions mm: 160x98x30
