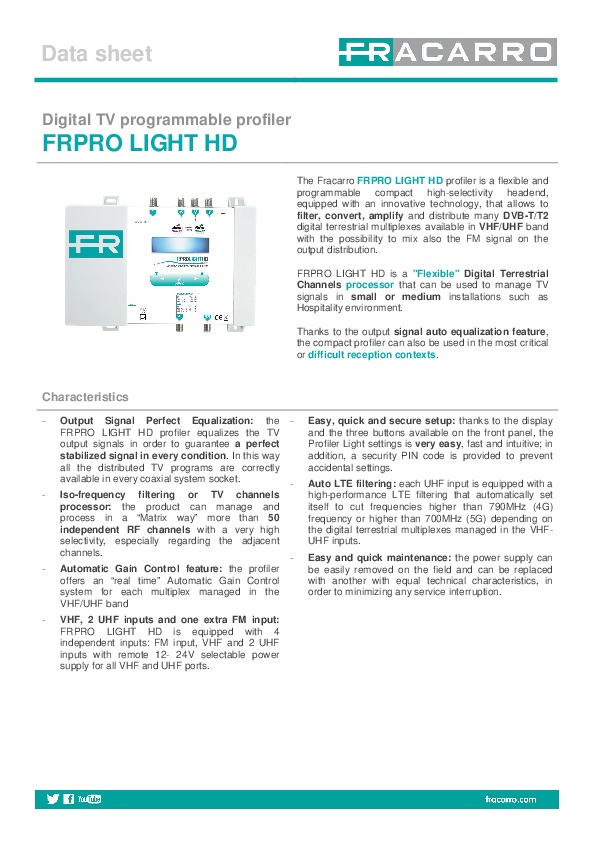

The Fracarro FRPRO LIGHT HD profiler is a flexible and programmable compact high-selectivity headend, equipped with an innovative technology, that allows to filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in VHF/UHF band with the possibility to mix also the FM signal on the output distribution.
FRPRO LIGHT HD is a "Flexible" Digital Terrestrial Channels processor that can be used to manage TV signals in small or medium installations such as
Hospitality environment.
Thanks to the output signal auto equalization feature, the compact profiler can also be used in the most critical or difficult reception contexts.
Main features:
- Output Signal Perfect Equalization: the FRPRO LIGHT HD profiler equalizes the TV output signals in order to guarantee a perfect stabilized signal in every condition. In this way all the distributed TV programs are correctly available in every coaxial system socket.
- Iso-frequency filtering or TV channels processor: the product can manage and process in a “Matrix way” more than 50 independent RF channels with a very high selectivity, especially regarding the adjacent channels.
- Automatic Gain Control feature: the profiler offers an “real time” Automatic Gain Control system for each multiplex managed in the VHF/UHF band
- VHF, 2 UHF inputs and one extra FM input: FRPRO LIGHT HD is equipped with 4 independent inputs: FM input, VHF and 2 UHF inputs with remote 12- 24V selectable power supply for all VHF and UHF ports.
- Easy, quick and secure setup: thanks to the display and the three buttons available on the front panel, the Profiler Light settings is very easy, fast and intuitive; in addition, a security PIN code is provided to prevent accidental settings.
- Auto LTE filtering: each UHF input is equipped with a high-performance LTE filtering that automatically set itself to cut frequencies higher than 790MHz (4G) frequency or higher than 700MHz (5G) depending on the digital terrestrial multiplexes managed in the VHFUHF inputs.
- Easy and quick maintenance: the power supply can be easily removed on the field and can be replaced with another with equal technical characteristics, in order to minimizing any service interruption.
