Supercedes previous model: 213010
The main differences are as follows:
· Extended frequency range: Covers channels from E05 to S11 (the previous DAB antenna started from E11). After the reorganisation or even decommissioning of 3rd Band in VHF, European regulations have changed, extending the DAB band from 174MHz to 230 MHz).
· More compact bulk packaging: Optimised from 8 (DAB model) to 4 pieces (DAB+ model)
· New white colour, replacing the previous black design.

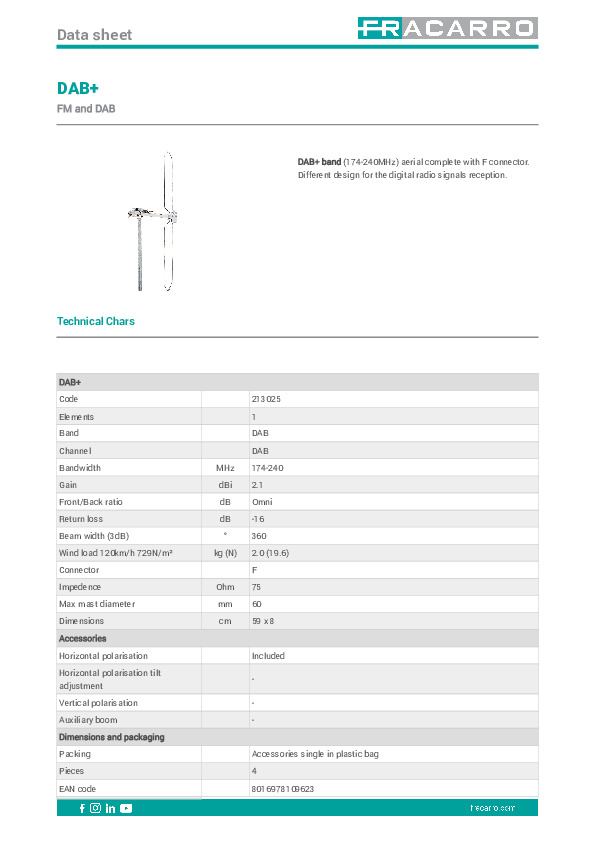

Fracarro DAB+ aerial for the reception of DAB+ signals.
Elements (No): 1
Channels (Europe): DAB
TECHNICAL CHARACTERISTICS:
- Bandwidth (MHz): 174 – 240
- Maximum Gain (dBi): 2.1
- Front-to-back ratio (dB): Omni
- Return loss (dB): -16
- Beamwidth (-3dB) (°): 360
- Impedance (Ohm): 75
MECHANICAL CHARACTERISTICS:
- Dimensions (cm): 58 x 8 (H x L)
- Maximum mast Ø (mm): 60
- Wind load at 120Km/h (720N/m2) (Kg (N)): 2 (19.62)
- Connector (Type): F
ACCESSORIES:
- Horizontal polarisation: Included
- Horizontal polarisation with tilt adj.: N/A
- Auxiliary Boom: N/A
