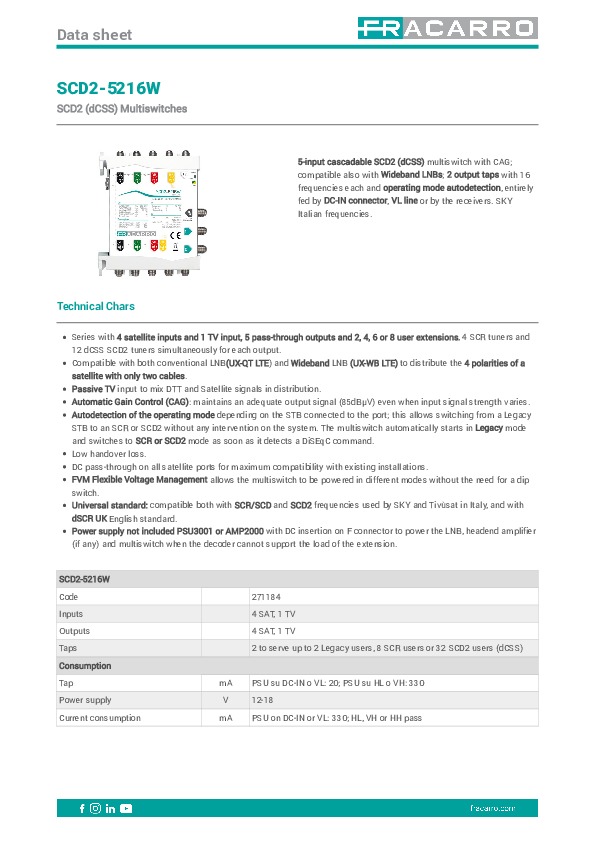

5-input cascadable SCD2 (dCSS) multiswitch with CAG; compatible also with Wideband LNBs; 2 output taps with 16 frequencies each and operating mode autodetection, entirely fed by DC-IN connector, VL line or by the receivers. SKY Italian and SKY UK frequencies.
Main Features:
- Series with 4 satellite inputs and 1 TV input, 5 pass-through outputs and 2, 4, 6 or 8 user extensions, 4 SCR tuners and 12 dCSS SCD2 tuners simultaneously for each output.
- Compatible with both conventional LNB(UX-QT LTE) and Wideband LNB (UX-WB LTE) to distribute the 4 polarities of a satellite with only two cables.
- Passive TV input to mix DTT and Satellite signals in distribution.
- Automatic Gain Control maintains an adequate output signal (85dBµV) even when input signal strength varies.
- Autodetection of the operating mode depending on the STB connected to the port; this allows switching from a Legacy STB to an SCR or SCD2 without any intervention on the system. The multiswitch automatically starts in Legacy mode and switches to SCR or SCD2 mode as soon as it detects a DiSEqC command.
- Low handover loss.
- DC pass-through on all satellite ports for maximum compatibility with existing installations.
- Flexible Voltage Management allows the multiswitch to be powered in different modes without the need for a dip switch.
- Universal standard: compatible both with SCR/SCD and SCD2 frequencies used by SKY and Tivùsat in Italy, and with dSCR UK English standard.
- Power supply not included PSU3001 with DC insertion on F connector to power the LNB, headend amplifier (if any) and multiswitch when the decoder cannot support the load of the extension.
