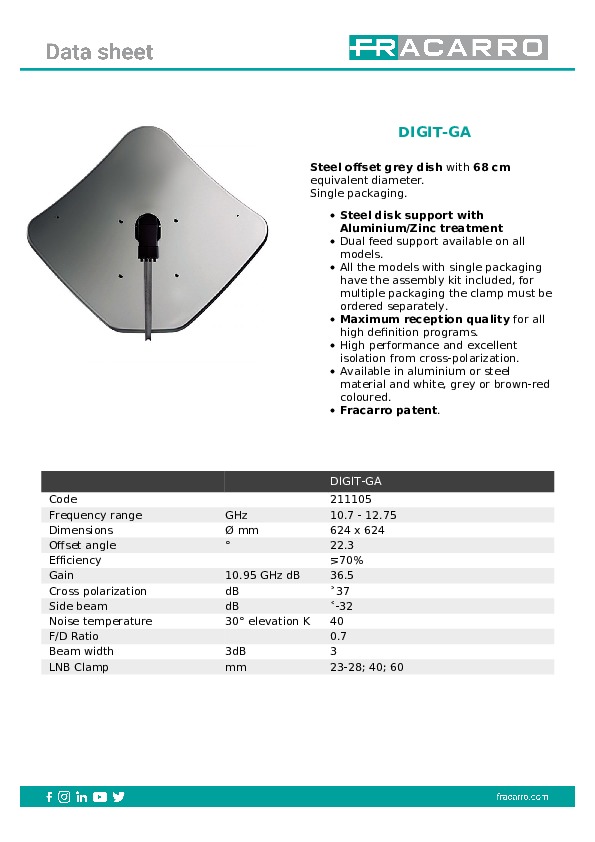

Steel offset grey dish with 68 cm equivalent diameter.
Main features:
- Steel disk support with Aluminium/Zinc treatment
- Dual feed support available on all models.
- All the models with single packaging have the assembly kit included, for multiple packaging the clamp must be ordered separately.
- Maximum reception quality for all high definition programs.
- High performance and excellent isolation from cross-polarization.
Frequency range GHz: 10.7-12.75
Dimensions Ø mm: 624x624
Offset angle ° :22.3
Efficiency: ≥70%
Gain 10.95GHz dB: 36.5
Cross polarisation on axis dB: >37
Side beam dB: <-32
Noise temperature: 40°K at 30° elevat.
F/D ratio: 0.7
Beamwidth (-3dB) : 3
LNB clamp mm: 23-28; 40; 60
Elevation angle: Maximum tilt 60°
Mast clamp mm 35-80
Material: steel
Bracket materia:Steel - aluminium/ zinc treatment
Wind load at 150Km/h Kg: 53
Diameter : 68
Colour: Grey
Dual feed dual feed 6°: DFPDIGIT cod. 211003
Mounting kit: ZNCDGT incluso
