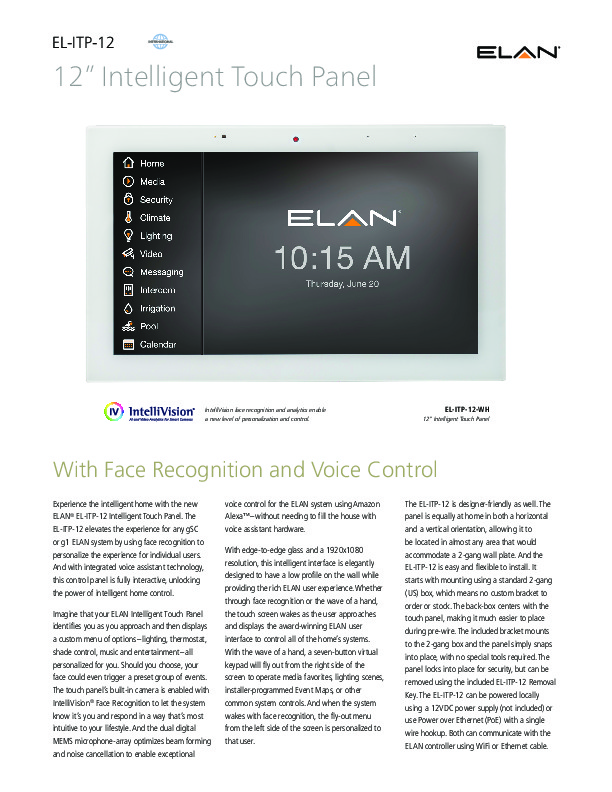

The EL-ITP-12 is a 12-inch interactive touch screen interface for ELAN controllers.
Imagine walking into the room, and the room knows it's you... not just anyone... but you.
Welcome to the Intelligent Home.
Now with IntelliVision® analytics, ELAN control is enhanced with the panel by using face recognition to personalize the experience. And using a dual digital microphone-array , the ELAN interactive touch screen provides an integrated voice control interface.
The touch screen wakes as the user approaches and displays the award-winning user interface to control all of the home’s systems, and a seven-button fly-out keypad can operate media favourites, trigger lighting scenes, or through installer programmed Event Maps, control virtually anything connected to the system.
The touch screen is elegantly designed, providing a rich user experience that is dedicated and always on.
Main features:
- Face recognition gives users a new and personalized way to control their intelligent home
- Dual microphone array integrates a voice control interface for an ELAN system
- Displays high resolution video and provides playback interface for ELAN surveillance
- 11.6” diagonal viewable area
- LCD touchscreen interface
- Edge to edge glass
- Capacitive touchscreen
- Proximity sensor to wake from sleep without touching as hand approaches
- Dimensions Overall: 11.68” wide x 7.25” height, 29.67w x 18.40h (cm), mounting depth 1” (2.54cm)
- Display: 8” diagonal
- Resolution: 1920W x 1080H
- Microphone: Dual Digital MEMS Microphone-Array
- Speaker: Stereo Micro Speaker, 1W
- Camera: 5 Mega-Pixel CMOS sensor
- Network:10/100 Ethernet / 802.11 B/G/N WiFi
7 button flyout provides instant access to lighting scenes, favourites or Event Maps
