CDVI Entry level double surface

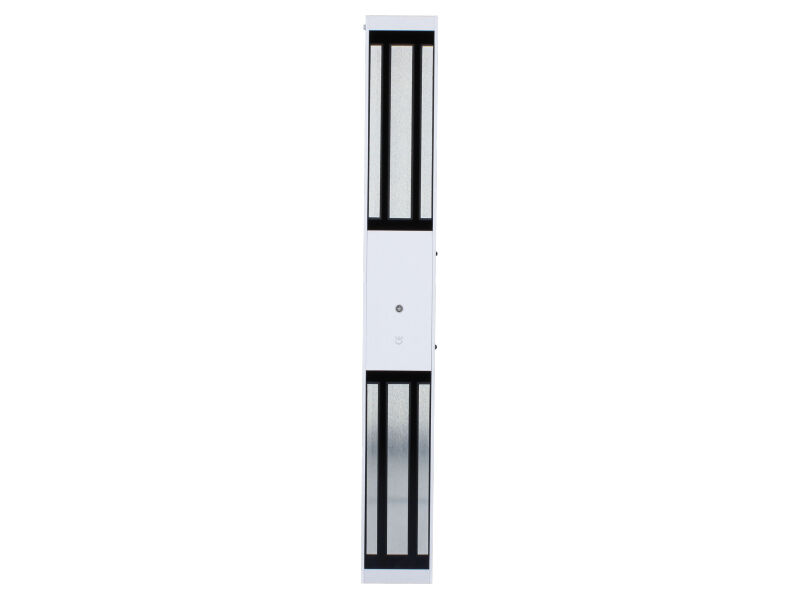

High performance magnetic locking at a cost-effective price. The C5S12 is a double surface maglock which provides up to 1000kg of holding force, spread across two 500kg magnets. The lock comes with armature plates, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C5S12 is a flexible and robust locking solution for a wide range of projects.

KEY FEATURES

• Up to 1000kg holding force spread over 2x 500kg magnets
• Cost-effective monitored magnetic lock
• No moving parts - simple to install and maintain
• Simple surface mount
• Single version available - see C5S11

TECHNICAL SPECIFICATIONS

• Fail Safe / Fail Secure - Fail safe
• Mounting - Surface
• Min Temperature (°C) = -20°C
• Max Temperature (°C) = 60°C

DIMENSIONS

Product Height (mm) - 539
Product Width (mm) - 66
Product Depth (mm) - 41
Armature Plate Dimensions (LxWxH) - 185 / 60 / 12
Product Weight (kg) - 8.4
