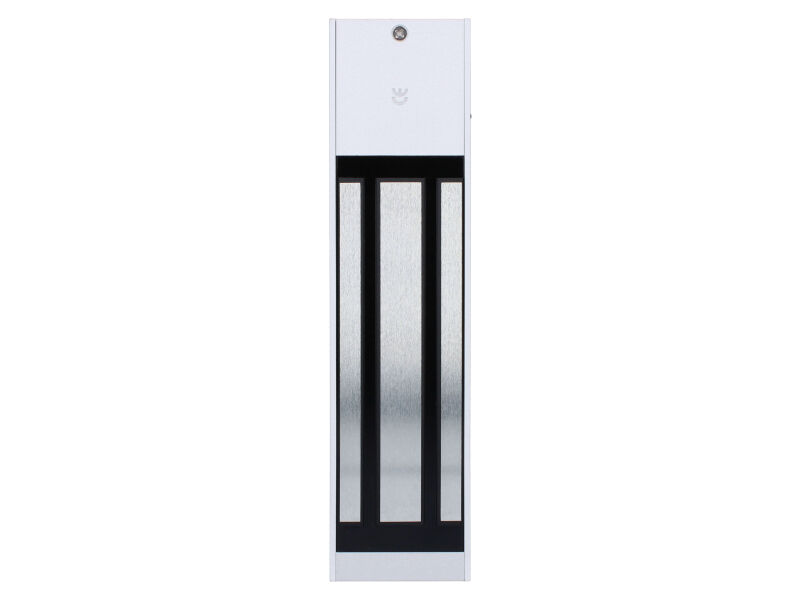

CDVI Entry Level 500kg Magnetic Lock

High performance magnetic locking at a cost-effective price. The C5S11 is a surface maglock which provides up to 500kg of holding force. The magnet comes with its armature plate, fixing kit, and full fitting instructions. Fully compatible with CDVI brackets, housings, and accessories, the C5S11 is a flexible and robust locking solution for a wide range of projects.

KEY FEATURES

• Up to 500kg holding force
• Fire rated: EN1634-1 & 2 for 30 min
• Cost-effective monitored magnetic lock
• No moving parts - simple to install and maintain
• Simple surface mount
• Double version available - see C5S12

TECHNICAL SPECIFICATIONS

• Fail Safe / Fail Secure - Fail safe
• Mounting - Surface
• Min Temperature (°C) = -20°C
• Max Temperature (°C) = 60°C

DIMENSIONS

Product Height (mm) - 275
Product Width (mm) - 65
Product Depth (mm) - 40
Armature Plate Dimensions (LxWxH) - 185 / 60 / 12mm
Product Weight (kg) - 4.2
