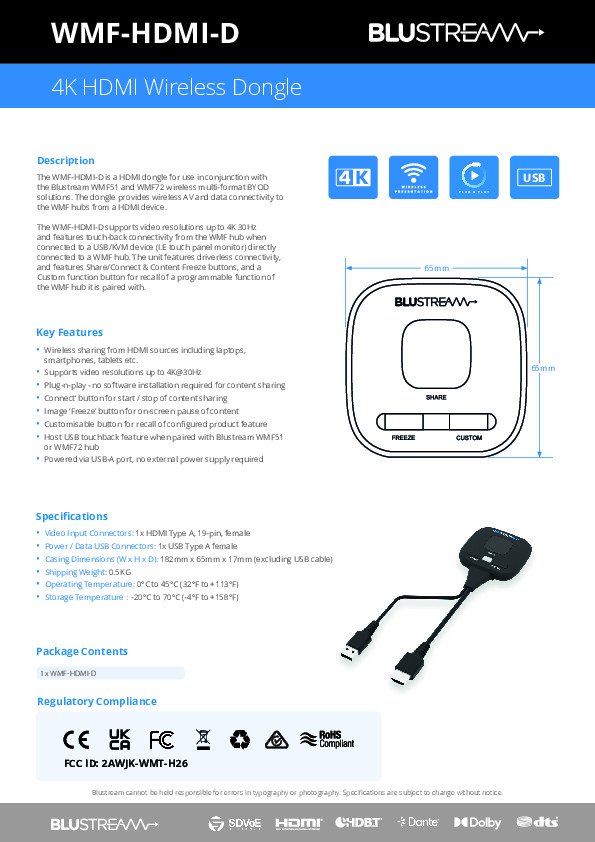

The WMF-HDMI-D is a HDMI dongle for use in conjunction with the Blustream WMF51 and WMF72 wireless multi-format BYOD solutions. The dongle provides wireless AV and data connectivity to the WMF hubs from a HDMI device.
The WMF-HDMI-D supports video resolutions up to 4K 30Hz and features touch-back connectivity from the WMF hub when connected to a USB/KVM device (I.E touch panel monitor) directly connected to a WMF hub. The unit features driverless connectivity, and features Share/Connect & Content Freeze buttons, and a Custom function button for recall of a programmable function of the WMF hub it is paired with.
Key Features
- Wireless sharing from HDMI sources including laptops, smartphones, tablets etc.
- Supports video resolutions up to 4K@30Hz
- Plug-n-play - no software installation required for content sharing
- Connect’ button for start / stop of content sharing
- Image ‘Freeze’ button for on-screen pause of content
- Customisable button for recall of configured product feature
- Host USB touchback feature when paired with Blustream WMF51 or WMF72 hub
- Powered via USB-A port, no external power supply required
Specifications
- Video Input Connectors: 1x HDMI Type A, 19-pin, female
- Power / Data USB Connectors: 1x USB Type A female
- Casing Dimensions (W x H x D): 182mm x 65mm x 17mm (excluding USB cable)
- Shipping Weight: 0.5KG
- Operating Temperature: 0°C to 45°C (32°F to +113°F)
- Storage Temperature : -20°C to 70°C (-4°F to +158°F)
