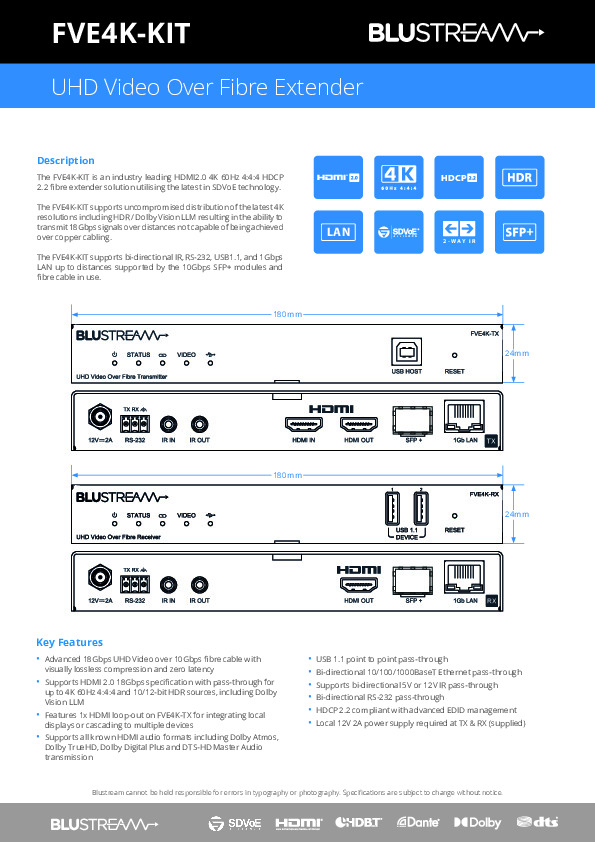

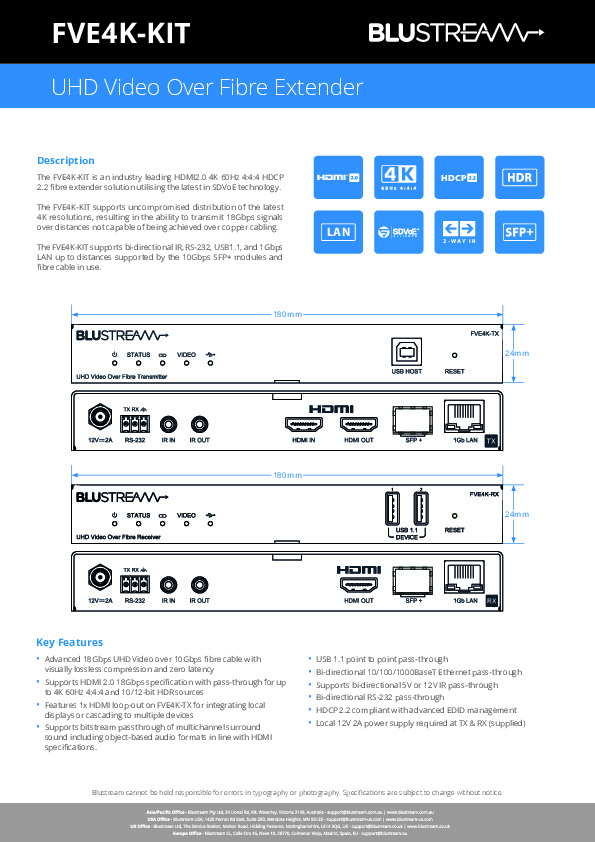

UHD Video Over Fibre Extender
The FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fibre extender solution utilising the latest in SDVoE technology.
It supports uncompromised distribution of the latest 4K resolutions including HDR / Dolby Vision LLM resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.
The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fibre cable in use.
Key Features
• Advanced 18Gbps UHD Video over 10Gbps fibre cable with visually lossless compression and zero latency
• Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision LLM
• Features 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• USB 1.1 point to point pass-through
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• Bi-directional RS-232 pass-through
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2A power supply required at TX & RX (supplied)
Specifications - RX
• Video Input Connectors: 1 x SFP+ module video network (SFP+ module not supplied)
• Video Output Connectors: 1 x HDMI Type A, female
• Ethernet Port: 1 x 1Gb LAN RJ45 pass-through
• USB / KVM Port: 2 x USB-Type A (Devices)
• 5V IR Input Port: 1 x 3.5mm stereo jack
• 5V IR Output Port: 1 x 3.5mm mono jack
• RS-232 Port: 1 x 3-pin Phoenix connector
• Power Supply: 12V/2A DC, screw type connector
Specifications - TX
• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x SFP+ module video network, 1 x HDMI Type A, female (SFP+ module not supplied)
• Ethernet Port: 1 x 1Gb LAN RJ45 pass-through
• USB / KVM Port: 1 x USB-Type B (Host)
• 5V IR Input Port: 1 x 3.5mm stereo jack
• 5V IR Output Port: 1 x 3.5mm mono jack
• RS-232 Port: 1 x 3-pin Phoenix connector
• Power Supply: 12V/2A DC, screw type connector
