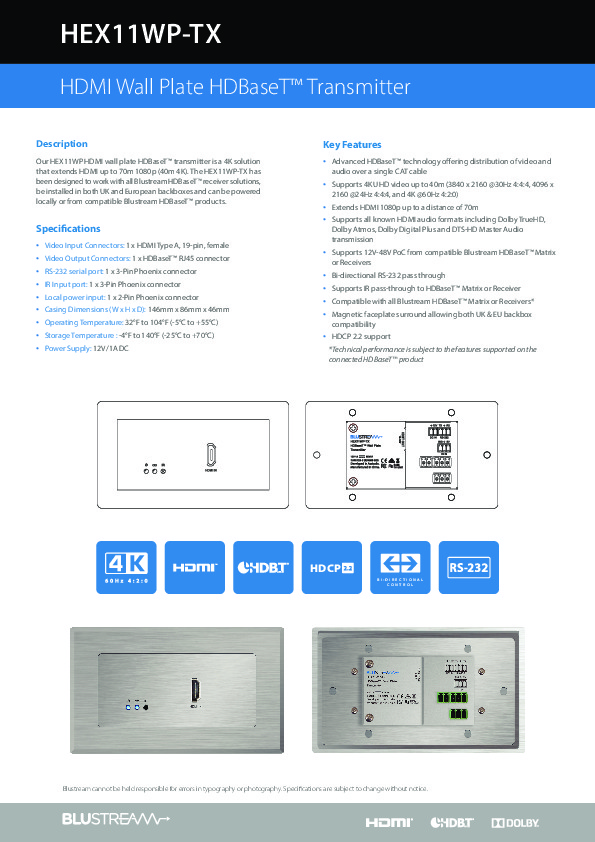

THE HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0). It has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Main features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products *
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT™ Receiver / Matrix device
- Compatible with all Blustream HDBaseT™ Receiver / Matrix products **
- Magnetic faceplate surround allowing both UK & EU backbox compatibility
- HDCP 2.2 support
- When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device
** Technical performance is subject to the features supported on the connected HDBaseT™ device
