BLUSTREAM CustomPro 16x16 CSC Matrix

4K 60Hz 4:4:4 to 70m(1080p to 100m) HDR IP
PoC, 2 Way IR 4x HDMI - 5 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: PRO16HBT100CS

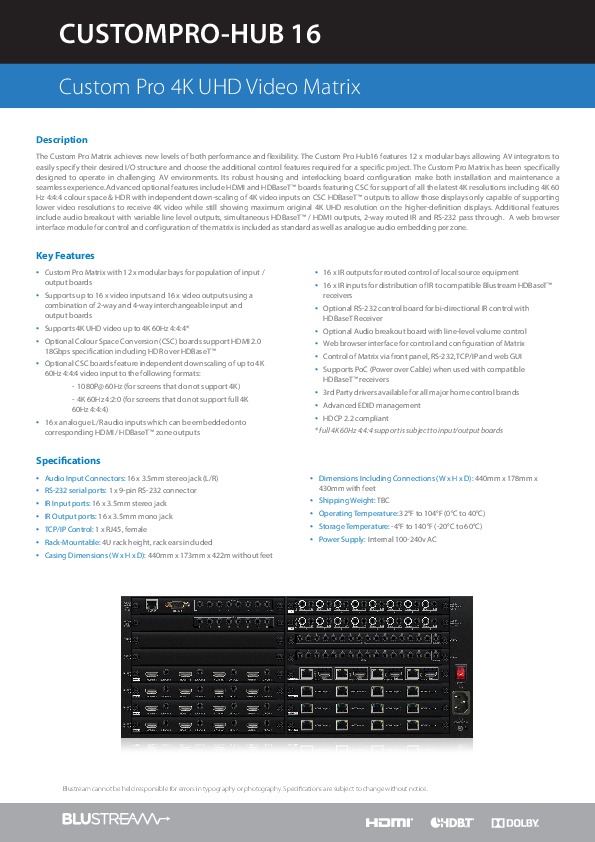

  Product Documents

BLUSTREAM CustomPro 16x16 CSC Matrix

4K 60Hz 4:4:4 to 70m(1080p to 100m) HDR IP
PoC, 2 Way IR 4x HDMI - 5 Year Warranty
*Special Order! NCNR - Check Lead Time*


The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.

Main features:

  • Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
  • Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
  • HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through): 1080p@ 60Hz (for screens that do not support 4K) / 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
  • Extend 16 x IR outputs for routed control of local source equipment
  • 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
  • Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
  • Audio breakout board with line-level volume control
  • Web browser interface for control and configuration of matrix
  • Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
  • Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
  • 3rd Party drivers available for major commercial & residential control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Used with Blustream HEX100CS-RX receivers (sold separately)
  • Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)
