The PRO-8ABV audio breakout board offers 8x simultaneous coaxial digital and variable line-level analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Main features
- Features 8x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs
- Analogue audio outputs include variable line-level control (supports 2ch PCM)

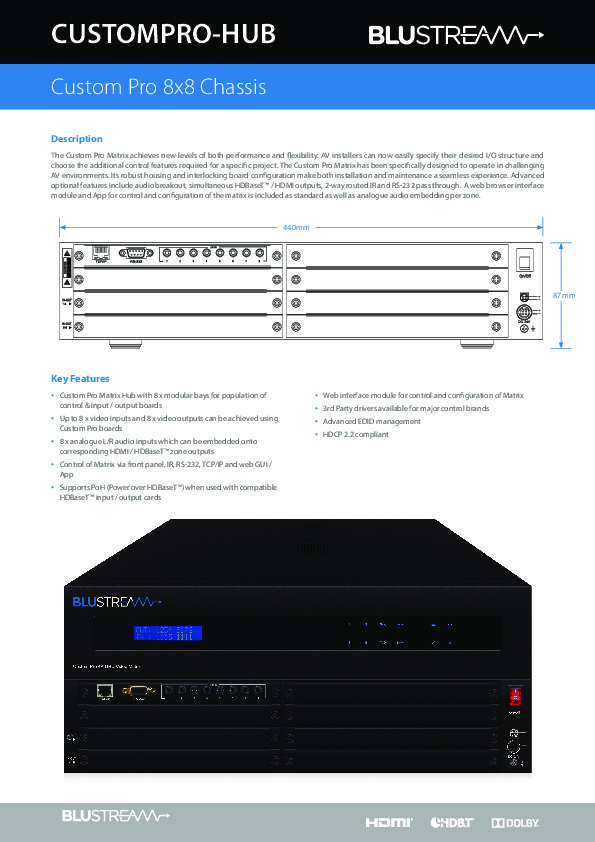

- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
Specifications:
Audio Output Connectors: 8x RCA (SPDIF), 8x Analogue Left/Right audio (3.5mm stereo jack
Card Dimensions (W x H x D): 182mm x 22mm x 177mm
Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
