The PRO-OUT2TCS output board offers 2x independent HDBaseT™ outputs utilising CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 100m (4K to 70m). It features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The PRO-OUT2TCS also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Main features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Features 2x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
- Supports 4K 60Hz 4:4:4 UHD video up to 70m*
- Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats: 1080p 60Hz (for screens that do not support 4K) / 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
- Extends HDMI 1080p video up to 100m
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Supports PoH (PoE) to power Blustream HDBaseT™ Receivers

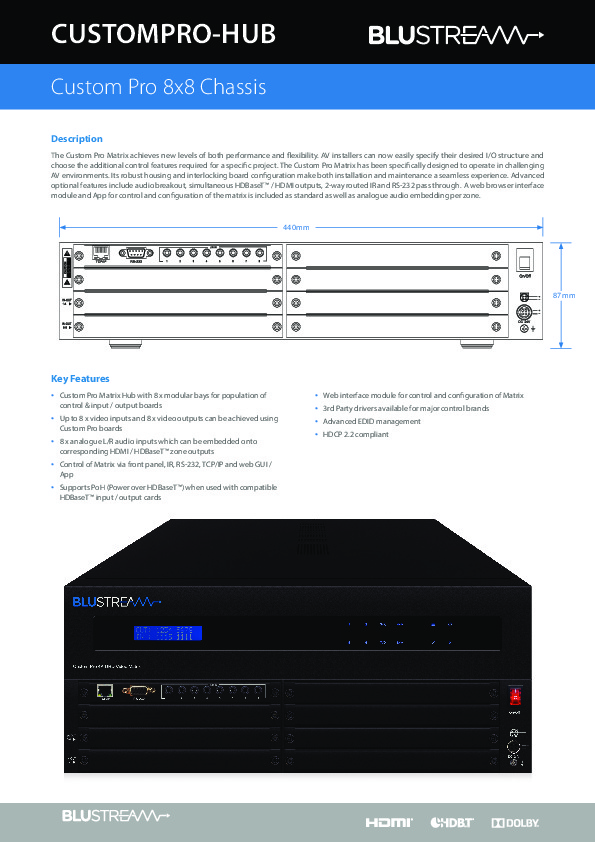

- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
- HDCP 2.2 Support
- To be used with the HEX100CS-RX receivers
- For HDMI 2.0 18Gbps video distribution the PRO-OUT2TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board
