BLUSTREAM Advanced Multi Format Switch

Presentation 3 HDMI + 1 USB-C In
2 HDMI + 1 HDBaseT™ Out - 5 Year Warranty
*Special Order! NCNR - Check Lead Time*

SKU: AMF42AU

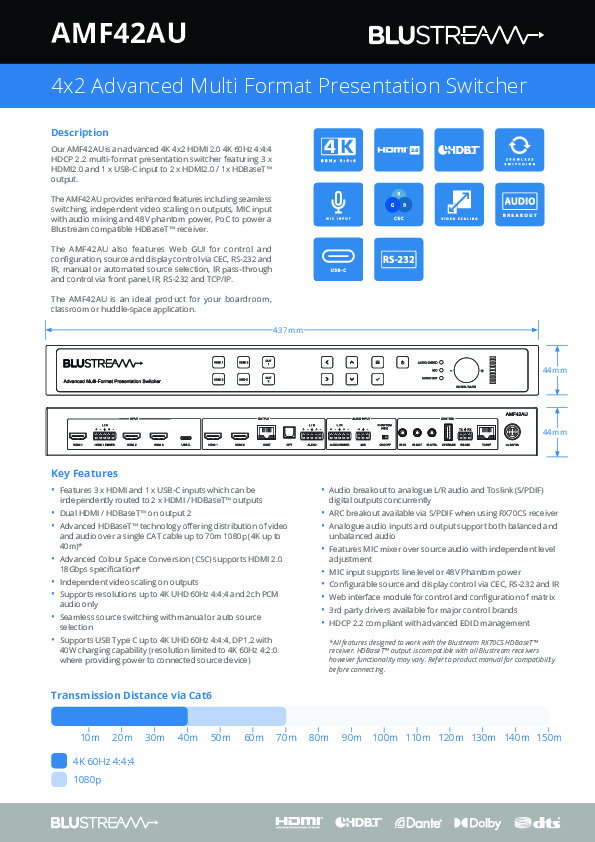

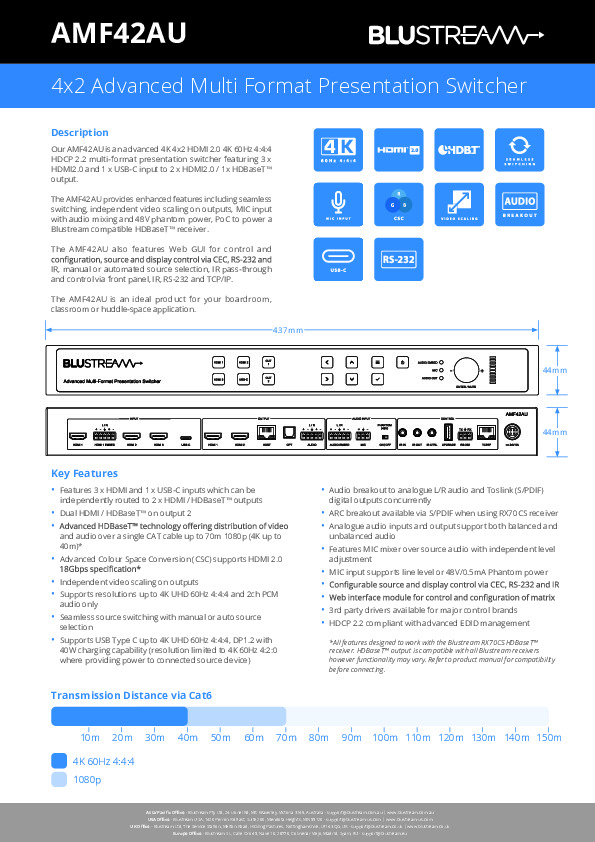

  Product Documents

BLUSTREAM Advanced Multi Format Switch

Presentation 3 HDMI + 1 USB-C In
2 HDMI + 1 HDBaseT™ Out - 5 Year Warranty
*Special Order! NCNR - Check Lead Time*


The Blustream AMF42AU is an advanced 4K 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 multi-format presentation switcher featuring 3 x HDMI 2.0 and 1 x USB-C input to 2 x HDMI 2.0 / 1x HDBaseT™ output.It provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT™ receiver.Also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.An ideal product for your boardroom, classroom or huddle-space application.

Main features:

  • Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
  • Dual HDMI / HDBaseT™ on output 2
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
  • Independent video scaling on outputs
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
  • Seamless source switching with manual or auto source selection
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
  • ARC breakout available via S/PDIF when using RX70CS receiver
  • Analogue audio inputs and output support both balanced and unbalanced audio
  • Features MIC mixer over source audio with independent level adjustment
  • MIC input supports line level or 48V Phantom power
  • Configurable source and display control via CEC, RS-232 and IR
  • Web interface module for control and configuration of matrix
  • 3rd party drivers available for major control brands
  • HDCP 2.2 compliant with advanced EDID management

*All features designed to work with the Blustream RX70CS HDBaseT™ receiver. HDBaseT™ output is compatible with all Blustream receivers however functionality may vary. Refer to product manual for compatibility before connecting.
