BLUSTREAM Advanced Control Module

for TCP/IP, RS232, IR control of IP300UHD,
IP350UHD Multicast 5 Year Warranty

SKU: ACM210

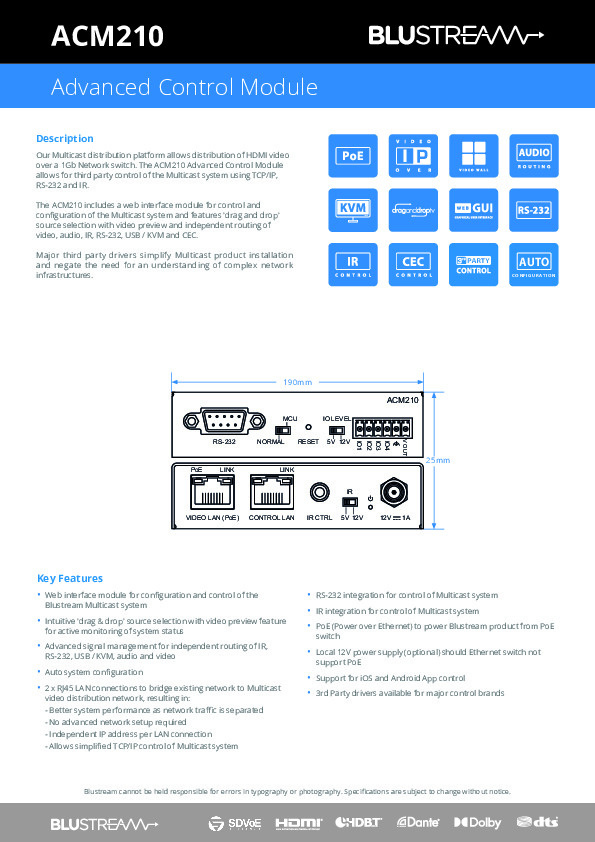

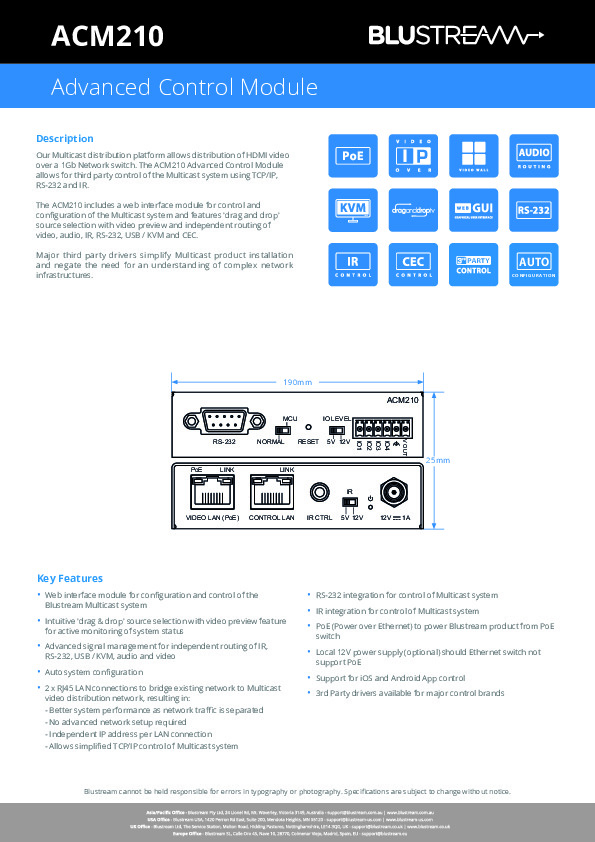

  Product Documents

BLUSTREAM Advanced Control Module

for TCP/IP, RS232, IR control of IP300UHD,
IP350UHD Multicast 5 Year Warranty


The Blustream Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR.

The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.

Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.

Key Features:

  • Web interface module for configuration and control of the Blustream Multicast system
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
  • Auto system configuration
  • 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
  • - Better system performance as network traffic is separated
  • - No advanced network setup required
  • - Independent IP address per LAN connection
  • - Allows simplified TCP/IP control of Multicast system
  • RS-232 integration for control of Multicast system
  • IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for major control brands

Specifications:

  • Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
  • RS-232 Serial Port: 1 x DB-9 female
  • GPIO Port: 1 x 6-Pin Phoenix connector
  • IR Input Port: 1 x 3.5mm stereo jack
  • PoE consumption: 4.0W (typical), 4.5W (max load)
  • Dimensions (W x D x H ): 96mm x 110mm x 26mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Box Contents:

1 x ACM210
1 x IR Control Cable - 3.5mm to 3.5mm Cable
1 x 6-pin Phoenix Connector
1 x Mounting Kit

Only registered trade customers can see our prices.

Login

Register

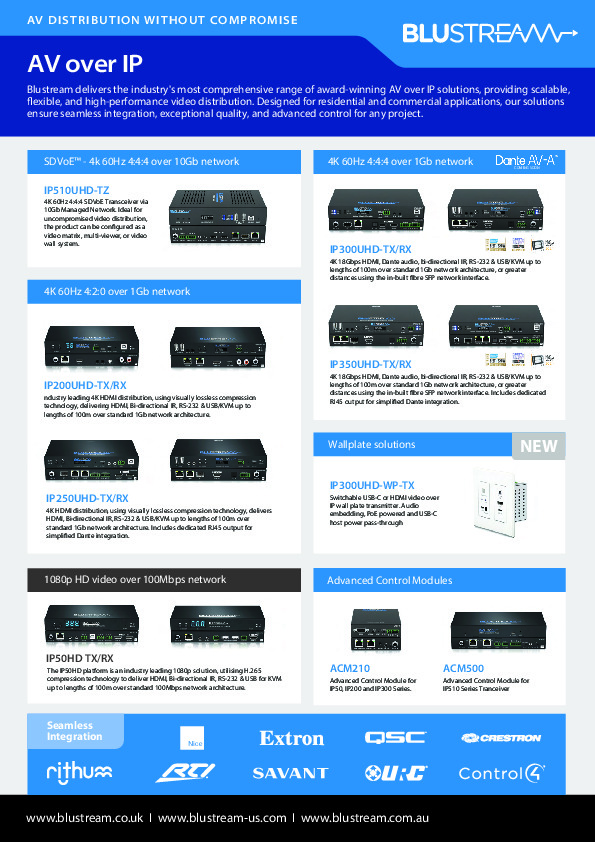

  Product Documents
