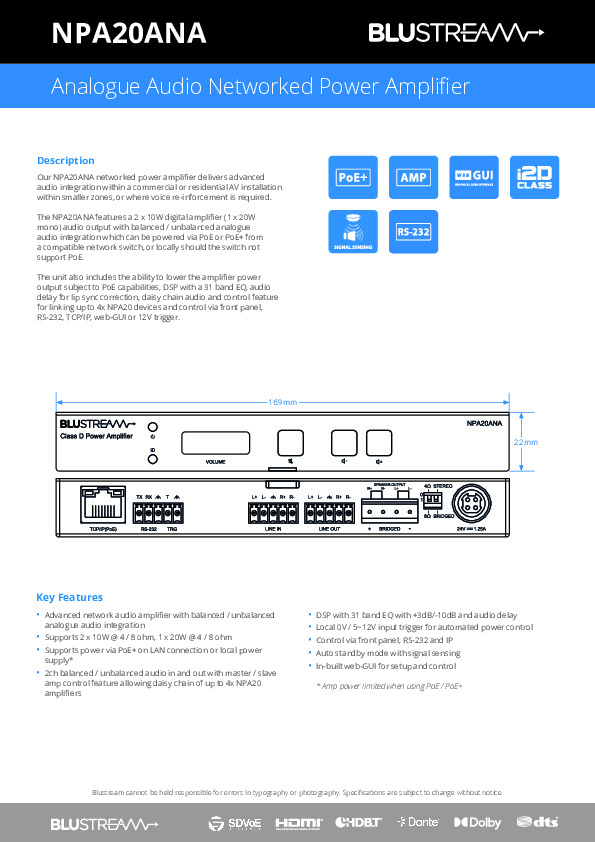

NPA20ANA networked power amplifier delivers advanced audio integration within a commercial or residential AV installation within smaller zones, or where voice reinforcement is required.
The NPA20ANA features a 2 x 10W digital amplifier (1 x 20W mono) audio output with balanced / unbalanced analogue audio integration which can be powered via PoE or PoE+ from a compatible network switch, or locally should the switch not support PoE.
The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, DSP with a 31 band EQ, audio delay for lip sync correction, daisy chain audio and control feature for linking up to 4x NPA20 devices and control via front panel, RS-232, TCP/IP, web-GUI or 12V trigger.
Key Features:
- Advanced network audio amplifier with balanced / unbalanced analogue audio integration
- Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
- Supports power via PoE+ on LAN connection or local power supply*
- 2ch balanced / unbalanced audio in and out with master / slave amp control feature allowing daisy chain of up to 4x NPA20 amplifiers
- DSP with 31 band EQ with +3dB/-10dB and audio delay
- Local 0V / 5~12V input trigger for automated power control
- Control via front panel, RS-232 and IP
- Auto standby mode with signal sensing
- In-built web-GUI for setup and control
* Amp power limited when using PoE / PoE+
