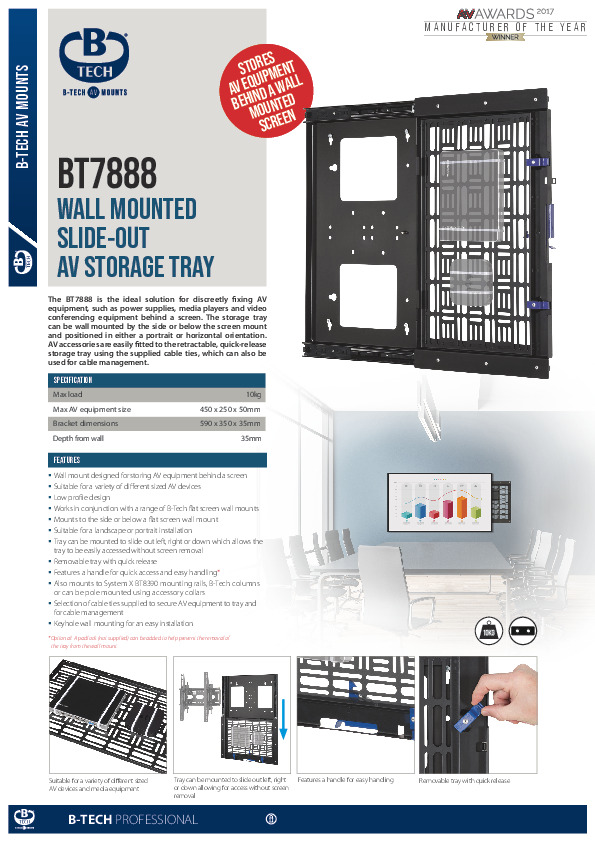

B-TECH Slide Out AV Storage Tray

The BT7888 is the ideal solution for discreetly fixing AV equipment, such as power supplies, media players and video conferencing equipment behind a screen. The storage tray can be wall mounted by the side or below the screen mount and positioned in either a portrait or horizontal orientation. AV accessories are easily fitted to the retractable, quick-release storage tray using the supplied cable ties, which can also be used for cable management.

Main Features:

• Wall mount designed for storing AV equipment behind a screen
• Suitable for a variety of different sized AV devices
• Low profile design
• Works in conjunction with a range of B-Tech flat screen wall mounts
• Mounts to the side or below a flat screen wall mount
• Suitable for a landscape or portrait installation
• Tray can be mounted to slide out left, right or down which allows the tray to be accessed without screen removal
• Removable tray with quick release
• Features a handle for quick access and easy handling**
• Also mounts to System X BT8390 mounting rails
• Selection of cable ties supplied to secure AV equipment to tray and for cable management
• Keyhole wall mounting for an easy installation

  ** Optional: A padlock (not supplied) can be added to mount to prevent easy removal of the tray from the wall mount**

Specifications:

• Max load: 10kg (22lbs)
• Max AV equipment size: 450 x 250 x 50mm (19" x 10" x 2")
• Bracket dimensions: 590 x 350 x 35mm (23.25" x 13.75" x 1.25")
• Depth from wall: 35mm (1.4")
