AJAX Wall Switch - Black

Wireless Power Relay with Energy Monitor
2 Year Warranty

SKU: 38189

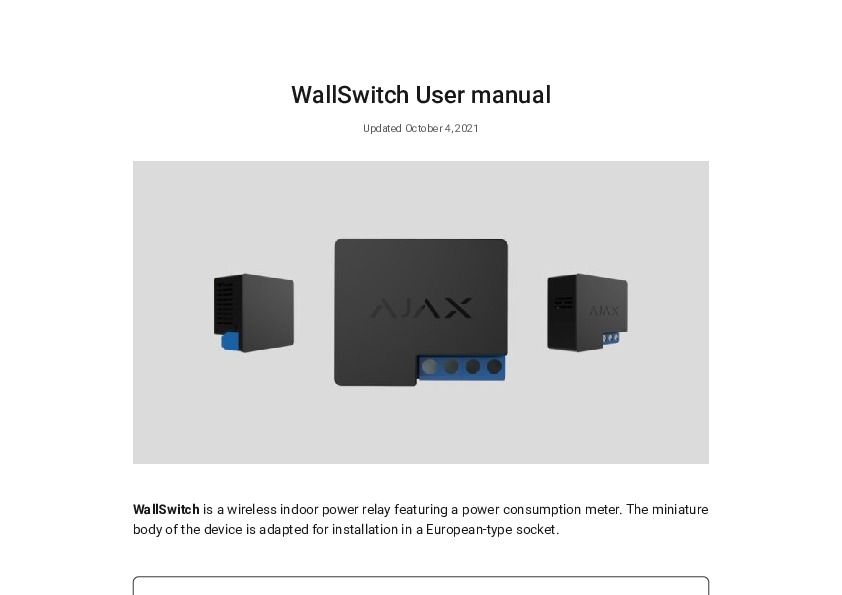

  Product Documents

AJAX Wall Switch - Black

Wireless Power Relay with Energy Monitor
2 Year Warranty


WallSwitch is a wireless indoor power relay featuring a power consumption meter. The miniature body of the device is adapted for installation in a European-type socket.

WallSwitch operates only within the Ajax security system (integration into third-party security systems is not provided), communicating with a hub via the protected Jeweller protocol. The communication range is up to 1,000 meters in the line of sight.

Main features:

  • Protects devices against overcurrent and voltage surges
  • Operates in bistable or pulse modes
  • Allows controlling electricity consumption
  • Connecting WallSwitch to the hub takes less than a minute
  • Access via Ajax app, IOs or Android

Actuating element: Electromagnetic relay
The service life of the relay: 200,000 switching-ons
Supply voltage 110 – 230 V AC ± 10% 50/60 Hz
Voltage protection: For 230 V mains: max — 253 V, min — 184 V
For 110 V mains: max — 126 V, min — 77 V
Maximum load current: 13 А
Maximum current protection: Yes, 13 A
Power output (resistance load 230 V): Up to 3 kW
Operating modes: Pulse and bistable (firmware version is 5.54.1.0 or higher. Manufacture date from March 5, 2020) / Only bistable (firmware version is lower than 5.54.1.0)
Pulse duration: 0.5 to 255 seconds (firmware version is 5.54.1.0 or higher)
Electricity meter function: Yes
Power consumption parameters control: Yes: current, voltage, consumed power
The power consumption of the device in the standby mode: Less than 1 W
Frequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the region of sale
Compatibility: Operates with all Ajax hubs, and range extenders
Maximum RF output power: Up to 25 mW
Modulation: GFSK
Radio signal range: Up to 1,000 m (any obstacles absent)
Shell protection rating: IP20
Operating temperature range: From 0°С to +64°С
Maximum temperature protection: Yes, 65°C
Operating humidity: Up to 75%
Overall dimensions: 39 × 33 × 18 mm
Weight: 30 g
Service life: 10 years
