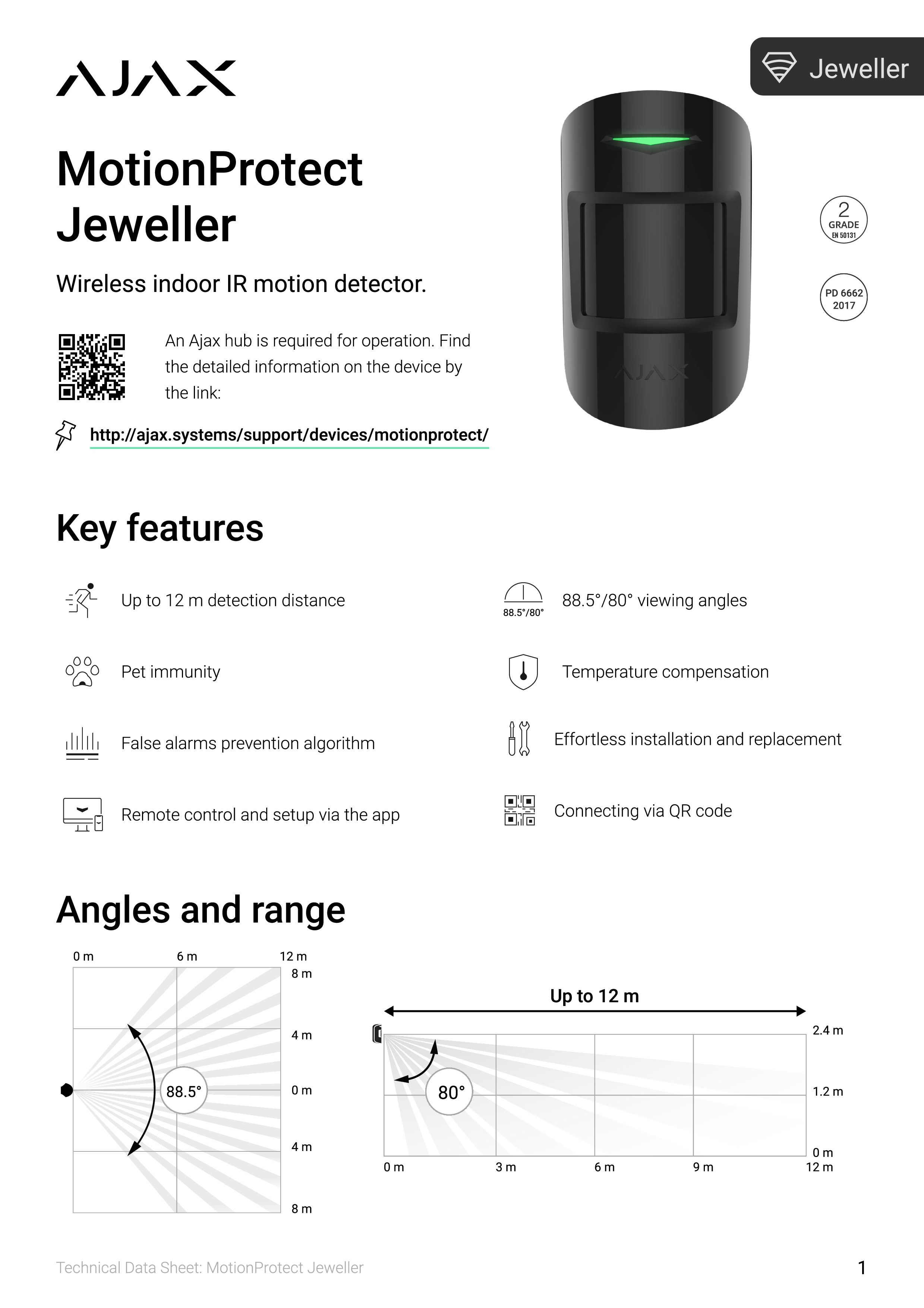

MotionProtect is a wireless motion detector designed for indoor use. It can operate for up to 5 years from an in-built battery, and monitors the area within 12-meter radius. MotionProtect ignores animals, while recognizes a human from the first step.
Main features:
- LED indicator
- Motion detector lens
- SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to dismantle the detector)
- Tamper button
- Device switch
- QR code
Sensitive element: PIR sensor
Motion detection distance: Up to 12 m
Motion detector viewing angles (H/V): : 8,5° / 80°
Time for motion detection From 0.3 to 2 m/s
Pet immunity:
Yes, height up to 50 cm, weight up to 20 kg
Tamper protection: Yes
Frequency band: 868.0 – 868.6 MHz or 868.7 – 869.2 MHz, depending on the sales region
Compatibility: Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
Maximum RF output power: Up to 20 mW
Modulation of the radio signal: GFSK
Radio signal range : Up to 1700 m (any obstacles absent)
Power supply: 1 battery CR123A, 3 V
Battery life: Up to 5 years
Installation method: Indoors
Operating temperature range: From -10°С to +40°С
Operating humidity: Up to 75%
Overall dimensions: 110 × 65 × 50 mm
Weight: 86 g
Service life: 10 years
Certification:Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3
Complete Set
MotionProtect
SmartBracket mounting panel
Battery CR123A (pre-installed)
Installation kit
Quick Start Guide
