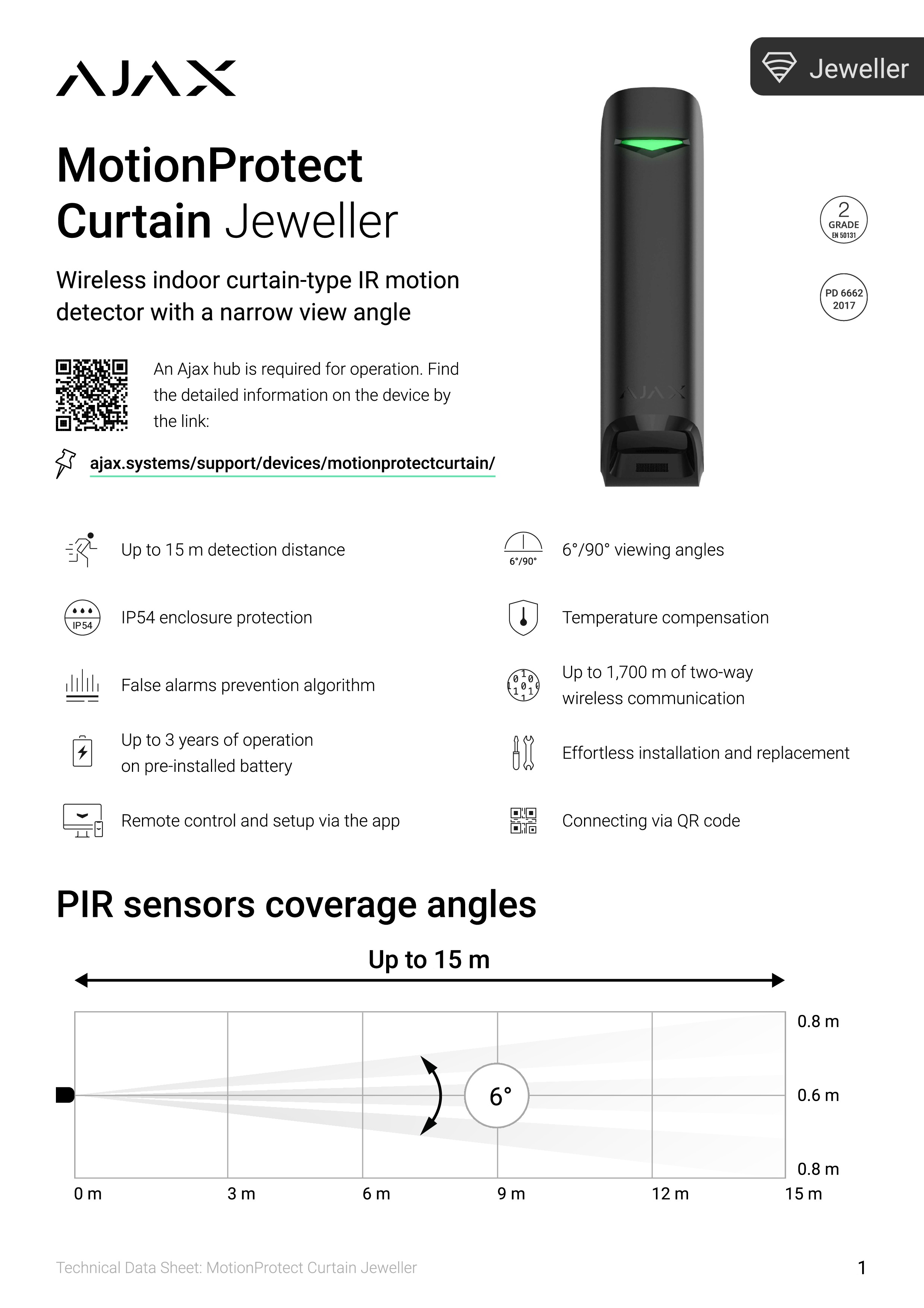

MotionProtect Curtain is a curtain type wireless motion detector. The detector has a narrow horizontal detection angle and is designed for indoor perimeter control: windows, doorways, and other entrances or exits of the guarded facility. Maximum motion detection distance is 15 m.
MotionProtect Curtain integrates into Ajax security systems, connecting to a hub through the Jeweller secure protocol. Wireless coverage may reach up 1,700 m line-of-sight. The pre-installed battery ensures up to 3 years of autonomous operation.
Main features:
- An iOS or Android app is used for detector setup. It also notifies the user about any events with push notifications, SMS, or calls (if enabled).
- Ajax can be connected to the central monitoring station of a security company.
- Connection to ocBridge Plus and uartBridge integration modules is not provided.
- LED indicator
- QR-Code
- Tamper button
- SmartBracket attachment panel
Sensor: PIR sensor, 2 pcs
Detection angles: Horizontal — 6°; vertical — 90°
Time for motion detection: From 0.3 to 2 m/s
Placement: Indoor only
Motion detection range:Up to 15/13/11 m (up to 8/7/6 m with Correlation Signal Processing enabled depending on sensitivity settings)
False alarm reduction: Available — Correlation Signal Processing
Tamper Protection: Available — detector body detachment and damage
Frequency bands: 868.0–868.6 MHz or 868.7–869.2 MHz depending on the region
Compatibility: Operates only with all Ajax hubs, and range extenders
RF signal strength: Up to 20 mW
Radio signal modulation: GFSK
Radio signal range: Up to 1700 m line-of-sight
Power supply: 1 battery CR123A, 3 V
Battery life: Up to 3 years
Installation method: Indoors only
Operating temperature range: From -10°С to +40°С
Protection class: IP54
Overall dimensions: 134 × 44 × 34 mm
Weight: 118 g
Service life: 10 years
