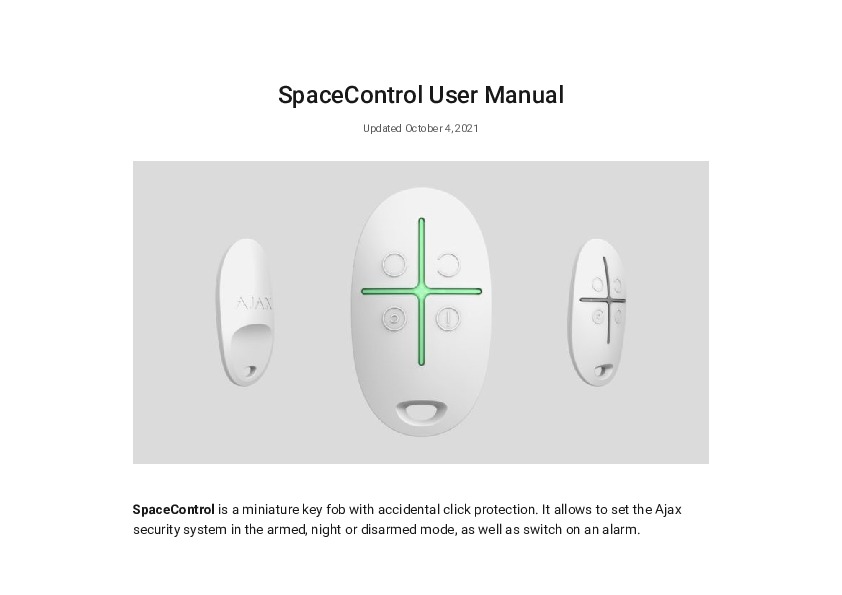

A key fob for controlling security modes. Features a panic button for sending alarms to your inner circle and a security company in case of trouble. By pressing the panic button, the device sends an alarm signal to the users connected to the hub and to the Central Monitoring Station. The security status is shown by the LED indicator.
Main features:
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Two-way communication
- Calls for help in case of emergency
- Activates full or partial alarm modes
- Indicates command execution with colour blink
- Ready to operate straight out the box
Compatibility: Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge
Number of buttons: 4
False alarm prevention:Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)
Deactivation of the panic button: Available
Power supply: Battery: CR2032 battery, 3 V
Battery life: Up to 5 years
Jeweller radio technology
Communication range with central unit - up to 1,300 m in an open space
Two-way communication between devices
Operating frequencies - 868.0 - 868.6 MHz
Self-adjusting RF output power - up to 20 mW
Block encryption based on AES algorithm
Device polling period - 12 - 300 s
Operating temperature range: From -25°С to +50°С
Permissible humidity: Up to 95%
Dimensions: 65 × 37 × 10 mm
Weight: 13 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set
SpaceControl keyfob
CR2032 battery (pre-installed)
User's guide
Service life: 10 years
