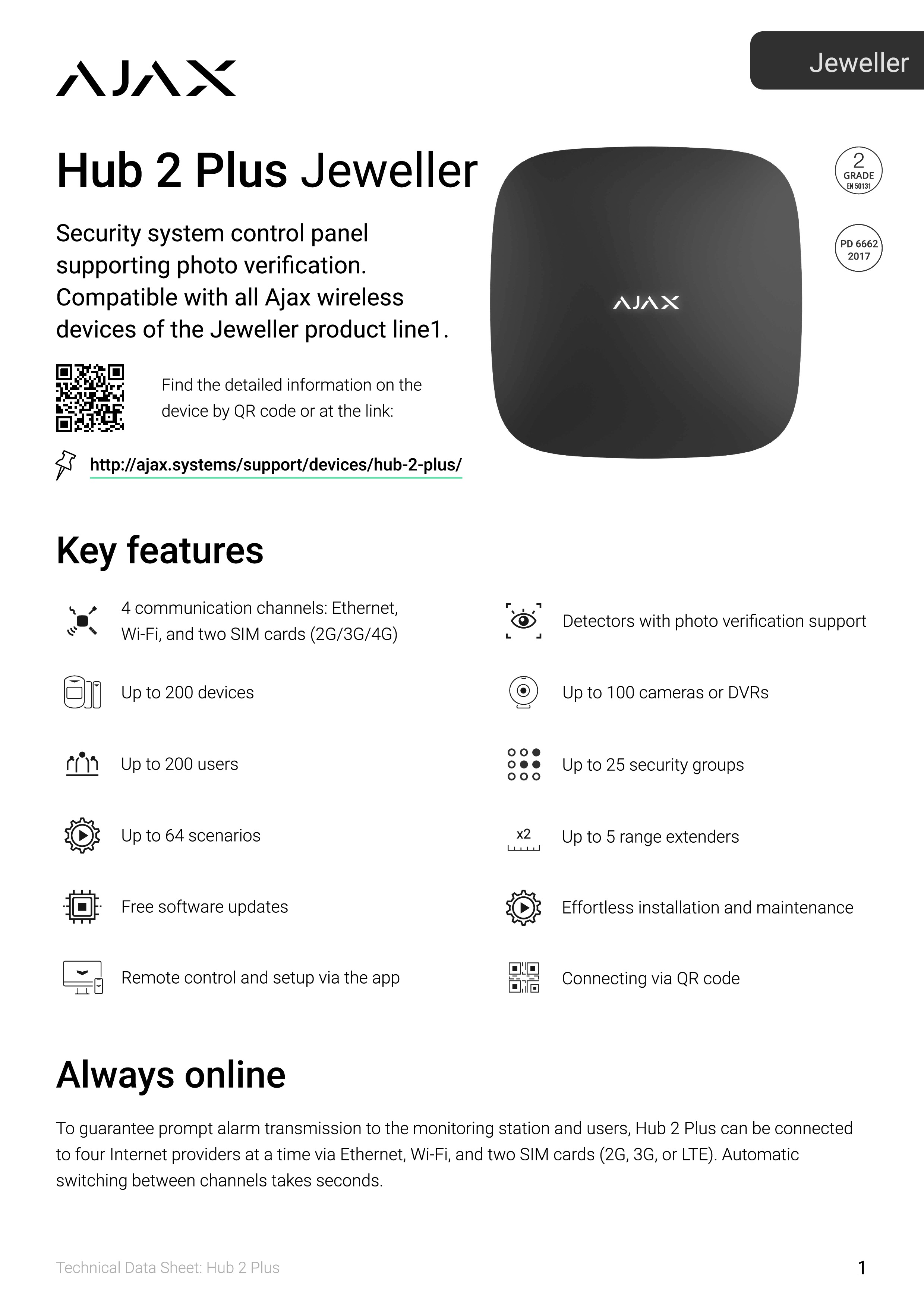

AJAX Hub 2 Plus - White

Communication with the outer world is critical for alarm control panels. Its reliability guarantees prompt delivery of alarm signals to Alarm Receiving Center and system users.

Hub 2 Plus makes external communication stability absolute. It has 4 communication channels and supports LTE. Such configuration allows you to connect the device to two separate Internet providers over Ethernet and Wi-Fi while having two cellular services ready for back up. Switching between channels happens seamlessly in seconds.

Main features:

• Jeweller guarantees delivery of alarms and photo confirmations
• Verification with photo in 9 seconds
• Controlled with Apps

Installation:indoors
Connected devices: 200
Video surveillance support: 100 cameras and DVRs
Users: 200
Rooms: 50
Security groups: 25
Connected ReX: 5
Connected sirens: up to 10
Scenarios: 64
MotionCam detectors support: +
Apps: iOS 11.0 and later / Android 4.4 and later
Communication channels: 2 SIM cards / 2G (GSM900/DCS1800 (B3/B8)) / 3G (WCDMA 850/900/2100 (B1/B5/B8)) / LTE (FDD B1/B3/B5/B7/B8/B20) / Wi-Fi (802.11 b/g/n) / Ethernet
Alarm signals: Delivery time: 0.15 sec / Notification types: SMS, call, push-notification
Switching between 2G, 3G, LTE : Instant
Switching between the SIM-cards: 4 minutes
CMS connectivity:CMS connectivity: Contact ID, SIA (DC-09) / CMS software supporting visual alarms verification
Operating system: OS Malevich
Power supply: 110-240 V with pre-installed battery / 6 V with alternative 6V PSU power supply / Energy consumption from the 110-240 V grid — 10 W
Built-in back-up battery : Li-Ion 3 А·h / Ensures up to 15 hours of operation when using SIM card only

Jeweller radio technology
Communication range with detectors — up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies — 868,0−868,6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping

Wings radio technology: Transmission of visual confirmations /Delivery verification of packages
Operating temperature range: From −10°С to +40°С
Anti-sabotage: Forgery prevention / Notifications about jamming / Tamper to detect back lid opening and unmounting from SmartBracket
Remote set up and testing: +
Dimensions: 163 × 163 × 36 mm
Weight: 351 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Service life: 10 years

Complete set
Ajax Hub 2 Plus control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
SIM card (depends on region)
User’s guide
