AJAX Glass Protect Detector - White

Wireless Glass Break Detector
2 Year Warranty

SKU: 22983

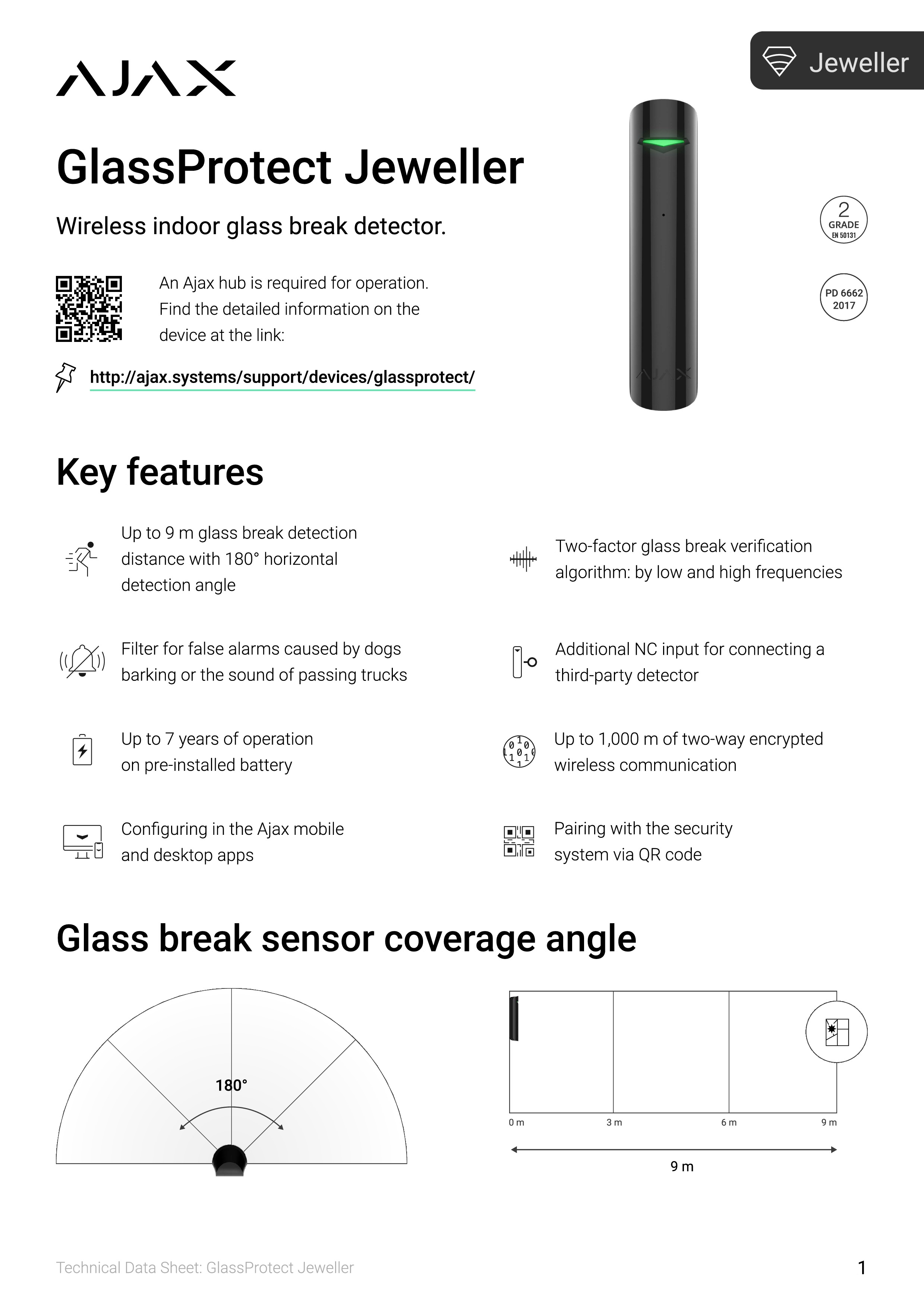

  Product Documents

AJAX Glass Protect Detector - White

Wireless Glass Break Detector
2 Year Warranty


GlassProtect is a wireless indoor glass break detector recognizing the sound of shattering the glass at a distance of up to 9 meters. GlassProtect can operate up to 7 years from a pre-installed battery and has a socket for connecting a third-party wired detector.
GlassProtect connects to the Ajax security system via the protected Jeweller radio protocol. The communication range is up to 1,000 meters in line of sight. Also, GlassProtect can be connected to third-party security systems using the Ajax uartBridge or Ajax ocBridge Plus integration modules.
Main features:

  • Configure GlassProtect via the Ajax app for macOS, Windows, iOS, or Android
  • Connect the Ajax security system to the central monitoring station of a security company
  • LED indicator
  • QR code
  • External detector connection socket

Sensitive element: Electret microphone
Glass break detection distance: Up to 9 m
Microphone coverage angle: 180°
Tamper protection: Yes
Radio communication protocol: Jeweller
Radio frequency band: 866.0 - 866.5 MHz / 868.0 - 868.6 MHz / 868.7 - 869.2 MHz / 905.0 - 926.5 MHz / 915.85 - 926.5 MHz /921.0 - 922.0 MHzDepends on the region of sale.
Compatibility: Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
Maximum RF output power: Up to 20 mW
Radio signal modulation: GFSK
Radio signal range: :Up to 1,000 m (any obstacles absent)
Socket for connecting wire detectors: Yes, NC
Power supply: 1 battery CR123A, 3 V
Battery life: Up to 7 years
Installation method: Indoors
Operating temperature range: From -10°С to +40°С
Operating humidity: Up to 75%
Overall dimensions: Ø 20 × 90 mm
Weight: 30 g
Service life: 10 years
Certification: Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-7-1, EN 50131-5-3
