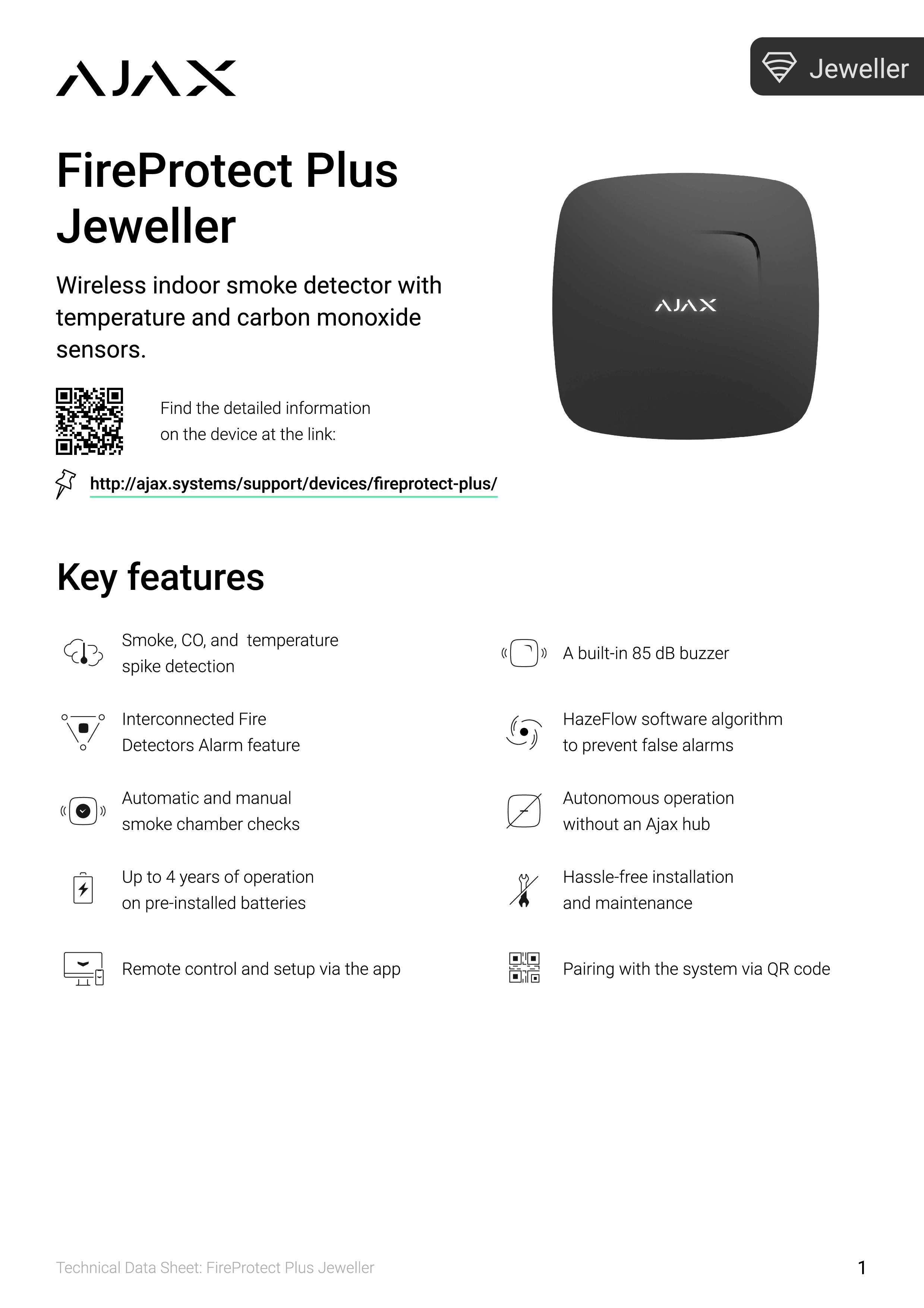

FireProtect Plus is a wireless indoor fire detector with an in-built buzzer and a battery, ensuring up to 4 years of autonomous operation. FireProtect Plus can detect smoke and rapid temperature increase.
Aside from these functions, FireProtect Plus additionally can alert of dangerous CO level. Both detectors can function independently from the hub
Connecting to the Ajax security system via a secured Jeweller radio protocol, FireProtect Plus communicates with the hub at a distance of up to 1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to them via the Ajax uartBridge or Ajax ocBridge Plus integration module.
Main features:
- Set up via the Ajax apps for iOS, Android, macOS, and Windows
- The Ajax security system can be connected to a central monitoring station of a security company.
- Light indicator (acts as the sensor and Test button)
- QR code
Smoke-sensitive element: Photoelectric sensor
Temperature sensitive element: Thermocouple
Sound notification volume: 85 dB at a distance of 3 m
Alarm threshold at the temperature: +59°С ±2°С
Tamper protection :Yes
Radio communication protocol: Jeweller
Radio frequency band: 866.0 - 866.5 MHz / 868.0 - 868.6 MHz / 868.7 - 869.2 MHz / 905.0 - 926.5 MHz / 915.85 - 926.5 MHz / 921.0 - 922.0 MHzDepends on the region of sale.
Compatibility:Operates independently or with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
Maximum RF output power: Up to 20 mW
Radio signal modulation: GFSK
Radio signal range: Up to 1,300 m (any obstacles absent)
Power supply: 2 × CR2 (main batteries), CR2032 (backup battery), 3 V
Battery life: Up to 4 years
Installation method: Indoors
Operating temperature range:From 0°С to +65°С
Operating humidity: Up to 80%
Overall dimensions: 132 × 132 × 31 mm
Weight: 220 g
Service life: 10 years
