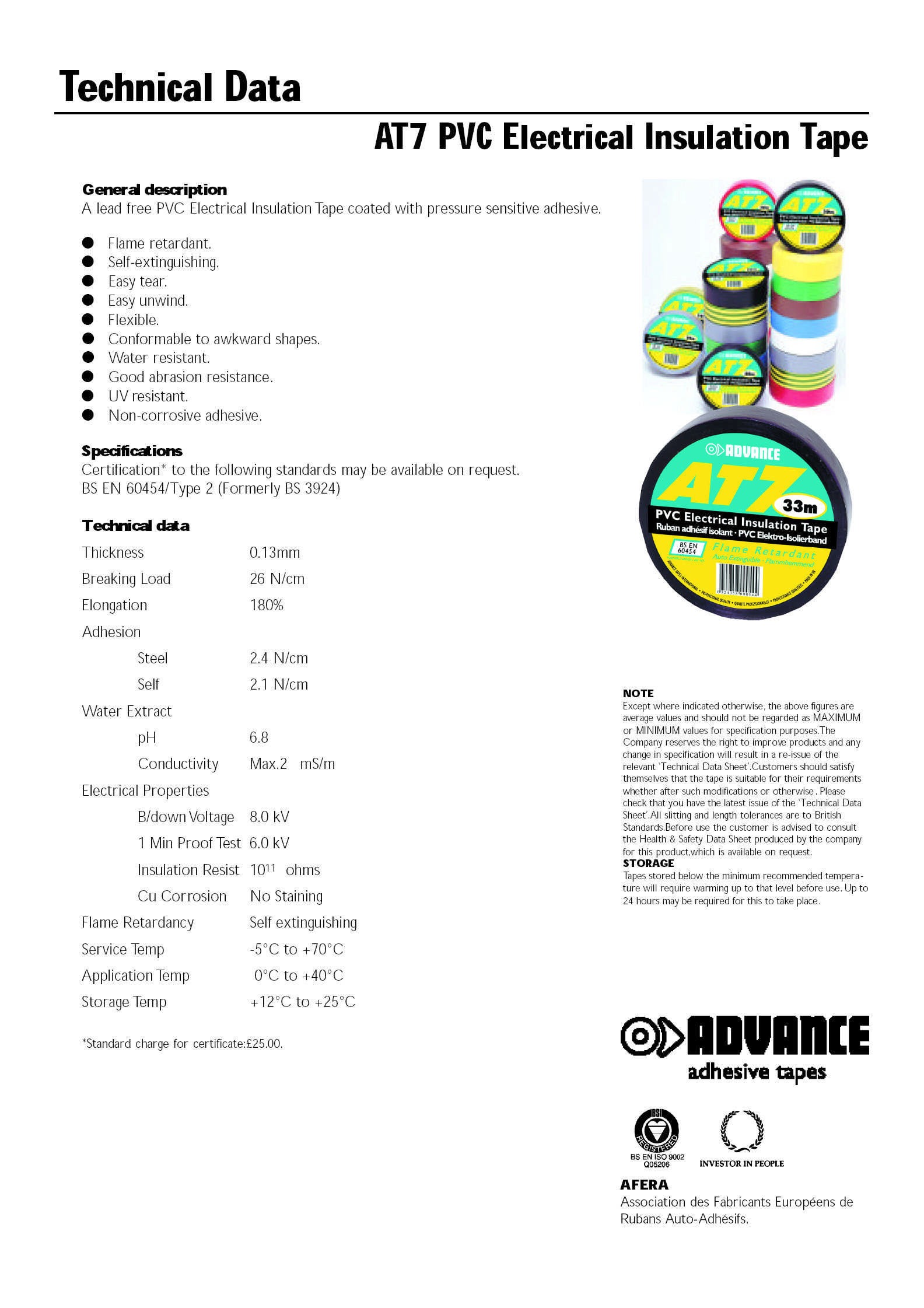

PVC Tape 19mm x 33m
A lead free PVC Electrical Insulation Tape coated with pressure sensitive adhesive.
- Flame retardant
- Self extinguishing
- Easy tear
- Easy unwind
- Flexible
- Conformable to awkward shapes
- Water resistant
- Aggressive adhesive
- Good abrasion resistance
- UV resistant
- Non-corrosive adhesive
- Conforms to BS EN 60454 Type 2
Colour: White
Width: 19mm
Thickness: 0.13mm
Length: 33m
Breaking load: 26 N/cm
Elongation: 180%
Adhesion to steel: 2.4 N/cm
Adhesion to self: 2.1 N/cm
Water Extrace pH: 6.8
Water Extract Conductivity: Max.2 mS/m
Electrical Properties B/down Voltage: 8.0kV
Electrical Properties 1 Min Proof Test: 6.0kV
Electrical Properties Insulation Resist: 10 ohms
Electrical Properties Cu Corrosion: No staining
Flame Retardancy: Self extinguishing
Service temp: -5 degrees C to +70 degrees C
Application Temp: 0 degrees C to +40 degrees C
Storage Temp: +12 degrees C to +25 degrees C
