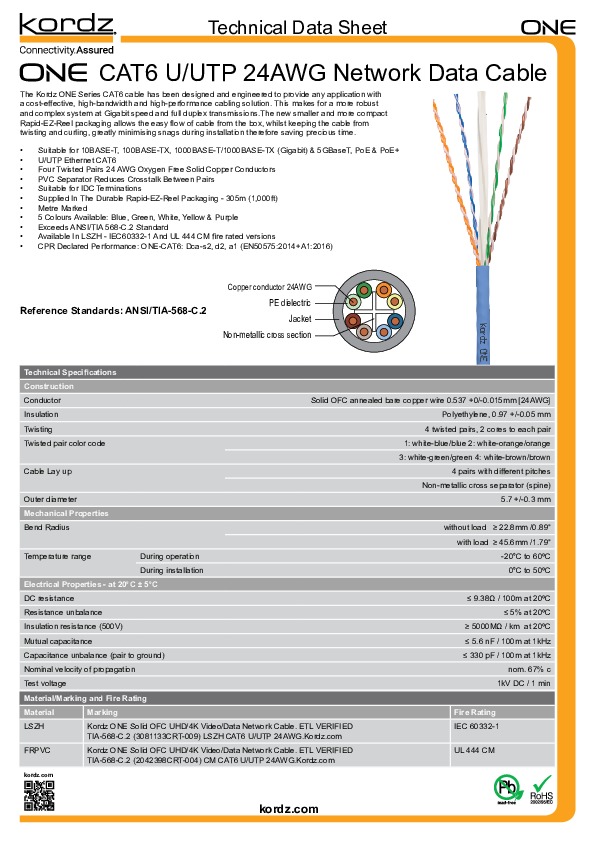

CAT6 U/UTP CABLE
The Kordz ONE Series CAT6 cable has been designed and engineered to provide any application with a cost-effective, high-bandwidth and high-performance cabling solution. This makes for a more robust and complex system at Gigabit speed and full duplex transmissions.The new smaller and more compact Rapid- EZ-Reel packaging allows the easy flow of cable from the box, whilst keeping the cable from twisting and curling, greatly minimising snags during installation therefore saving precious time.
Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 5GBaseT, PoE & PoE+
U/UTP Ethernet CAT6
Four Twisted Pairs 24 AWG Oxygen Free Solid Copper Conductors
PVC Separator Reduces Crosstalk Between Pairs
Suitable for IDC Terminations
Supplied In The Durable Rapid-EZ-Reel Packaging - 305m (1,000ft)
Metre Marked
5 Colours Available: Blue, Green, White, Yellow & Purple
Exceeds ANSI/TIA 568C-2.1 Standard
Available In LSZH - IEC60332-1 And UL 444 CM fire rated versions
CPR Declared Performance: ONE-CAT6: Dca-s2, d2, a1 (EN 50575:2014+A1:2016)
TECHNICAL SPECIFICATIONS
CONSTRUCTION
Conductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]
Insulation: Polyethylene, 0.97 +/-0.05 mm
Twisting: 4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brown
Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
Outer Diameter: 5.7 +/-0.3 mm
MECHANICAL
Bend Radius: without load ≥ 22.8mm /0.89”, with load ≥ 45.6mm /1.79”
Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC
ELECTRICAL
DC Resistance: ≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance: ≤ 5% at 20ºC
Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
Mutual Capacitance: ≤ 5.6 nF / 100m at 1kHz
Capacitance Unbalance (Pair to Ground): ≤ 330 pF / 100m at 1kHz
Nominal Velocity of Propagation: nom. 67% c
Test Voltage: 1kV DC / 1 min
