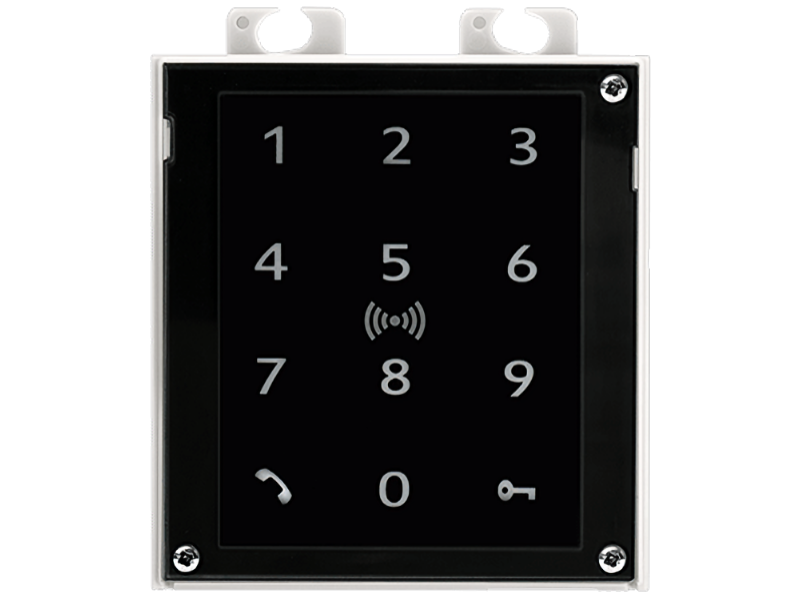

2N® Access Unit 2.0 Touch Keypad & BT

Bluetooth RFID 125kHz 13.56MHz NFC
PICard Compatible 5 Year Warranty

This versatile smart reader combines three access technologies in a single device and offers users maximum flexibility. Supplement the increasingly popular mobile access with backups such as PIN codes in case, for example, residents come home and their phone is out of battery. Traditionalists can still use RFID cards, which can also be encrypted using 2N^® PICard technology. This is particularly useful in office projects.

3 access technologies in 1 reader
Mobile access backed up by PIN
Compatible with 2N^® PICard technology

Power supply
Type	PoE and/or 12 V/1 A DC
PoE	802.3af (Class 0–12.95 W)
Interfaces
LAN	10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended cabling	Cat-5e or better
Active switch output	8 to 12 V DC/max 600 mA
Passive switch	NO/NC contacts, up to 30 V/1 A AC/DC
Inputs	2 inputs - in passive/active mode (-30 V to +30 V DC)
	OFF = open or Uin> 1.5 V
	ON = short-circuit or Uin< 1.5 V
Tamper switch	native part of the 2N Access Unit 2.0
Audio	buzzer (97dBA)
Supported protocols	DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
Bluetooth Reader
Version	compatible with Bluetooth 5.0 (BLE)
Range	(short - typically up to 3m, long - typically up to 10m)
	*distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
Security	RSA-1024 and AES-128 encryption
RX sensitivity	up to -93 dBm
Mode	touch, tap in app, card
Mobile Application Support
	Android 6.0 and higher, iOS 12.0 and higher

RFID Card Reader
Supported frequencies	125 kHz variant
	13.56 MHz variant
	125 kHz and 13.56 MHz variant
Supported card types	card type compatibility depends on Order No.
125 kHz	EM4xxx
	HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz	ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N^® Mobile Key)
	reads UID (CSN) and secured MIFARE^® DESFire^® EV2/EV3 cards using 2N^® PICard technology
Secured 13.56 MHz	ISO14443A (MIFARE^® DESFire^®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (2N^® Mobile Key), HID SE (Seos, iClass, MIFARE SE)
	reads secured MIFARE^® DESFire^® EV2/EV3 cards using 2N^® PICard technology
	reads PACs ID (HID iClass cards with SIO object)
Touch Keypad
Technology	capacitive touch layer (sensitivity 0,1 pF)
Reliability	regular automatic calibration (SmartSense Auto-tunning)
	does not detect false touches on wet surface
Signalling	configurable backlight intensity
	indication using multicoloured LEDs
	acoustic response for every keypad touch
Mechanical Properties
Frame	robust zinc cast frame with surface finish (nickel and black colour)
Operating temperature	-40°C to +60°C
Storage temperature	-40°C to +70°C
Operating relative humidity	10%-95% (non-condensing)
Dimensions	Wall (surface) mounting frame:
	- 1 module: 107 (W) x 130 (H) x 28 (D) mm
	Flush mounting frame:
	- 1 module: 130 (W) x 153 (H) x 5 (D) mm
	Flush mounting box (minimum hole):
	- 1 module: 108 (W) x 131 (H) x 45 (D) mm
Weight	max 0.8 kg
Cover rating	IP54 and IK08
Extension Modules
	2N Access Unit 2.0 supports modules from the 2N^® IP Verso intercom: RFID, Bluetooth and fingerprint readers, keypad, I/O module, Wiegand, etc.
