2N® Access Unit 2.0 - Touch Keypad

5 Year Warranty

SKU: 916032

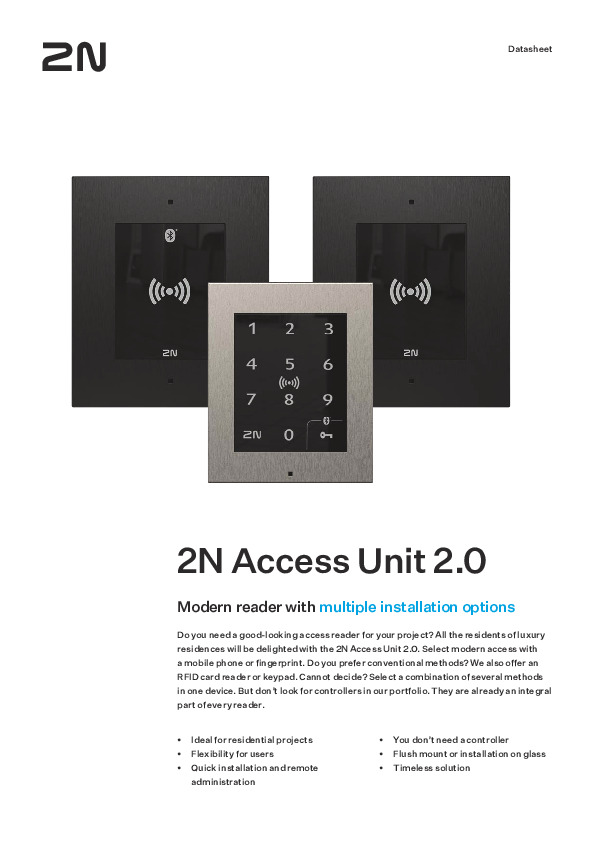

  Product Documents

2N® Access Unit 2.0 - Touch Keypad

5 Year Warranty


Backlit numbers on a smooth surface which reacts to your touch. This is the 2N® Access Unit 2.0 Touch Keypad. What options does the keypad offer? One PIN code for everybody, a unique PIN code for each user, PIN codes with a time limit, and one-off PIN codes. Exceptionally simple administration is another advantage. Send out the PIN to users by e-mail or text message.

Interfaces
Power supply:PoE and/or 12 V/1 A DC
PoE:802.3af (Class 0–12.95 W)
LAN:10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
Recommended cabling:Cat-5e or better
Active switch output:8 to 12 V DC/max 600 mA
Passive switch:NO/NC contacts, up to 30 V/1 A AC/DC
Inputs:2 inputs - in passive/active mode (-30 V to +30 V DC)
 OFF = open or Uin> 1.5 V
 ON = short-circuit or Uin< 1.5 V
Tamper switch:native part of the 2N Access Unit 2.0
Audio:buzzer (97dBA)
Supported protocols:DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
Touch Keypad
Technology:capacitive touch technology
 high touch layer sensitivity (0.1pF)
Reliability:regular automatic calibration (SmartSence Auto-tunning)
 does not detect false touches on wet surface
Signalling:configurable backlight intensity
 indication using multicoloured LEDs
 acoustic response for every keypad touch
Mechanical Properties
Frame:robust zinc cast frame with surface finish (nickel and black color)
Operating temperature:-40°C to +60°C
Storage temperature:-40°C to +70°C
Operating relative humidity:10%-95% (non-condensing)
Dimensions:Wall (surface) mounting frame:
 - 1 module: 107 (W) x 130 (H) x 28 (D) mm
 Flush mounting frame:
 - 1 module: 130 (W) x 153 (H) x 5 (D) mm
 Flush mounting box (minimum hole):
 - 1 module: 108 (W) x 131 (H) x 45 (D) mm
Weight:max 0.8 kg
Cover rating:IP54 and IK08
