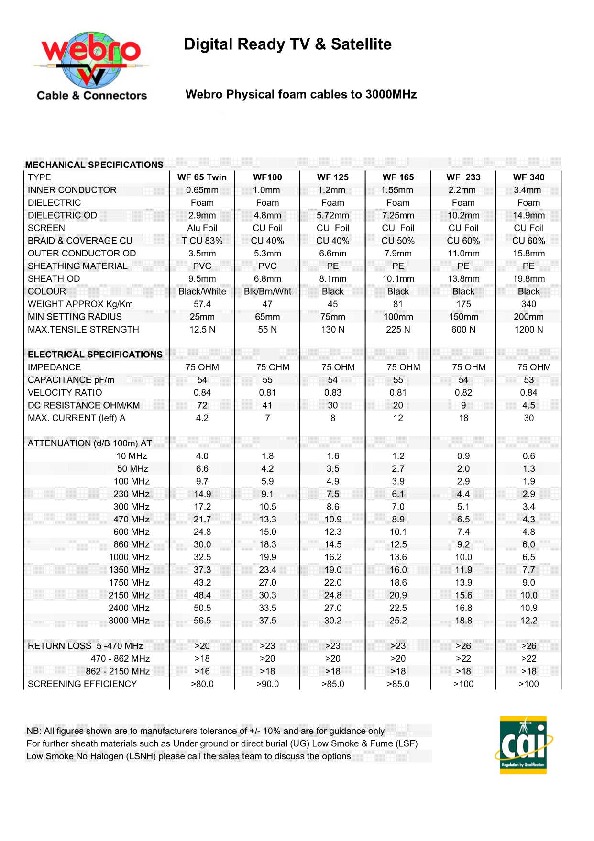

WEBRO WF65CU Twin cable. Designed for use with SKY+ installations, saving time as only one cable run is required.
MECHANICAL SPECIFICATIONS
TYPE: WF65
INNER CONDUCTOR: 0.65mm
DIELECTRIC: Foam
DIELECTRIC OD: 2.9mm
SCREEN: Alu Foil
BRAID & COVERAGE CU: T CU 83%
OUTER CONDUCTOR OD: 3.5mm
SHEATHING MATERIAL: PVC
SHEATH OD: 9.5mm
COLOUR: Black/White
WEIGHT APPROX Kg/kM: 57.4
MIN SETTING RADIUS: 25mm
MAX. TENSILE STRENGTH: 12.5N
ELECTRICAL SPECIFICATIONS
IMPEDANCE: 75 OHM
CAPACITANCE pF/m: 54
VELOCITY RATIO: 0.84
DC RESISTANCE OHM/KM: 72
MAX. CURRENT (leff)A: 4.2
ATTENUATION (db 100m) AT
10MHz: 4.0
50MHz: 6.6
100MHz: 9.7
230MHz: 14.9
300MHz: 17.2
470MHz: 21.7
600MHz: 24.8
860MHz: 30.0
1000MHz: 32.5
1350MHz: 37.3
1750MHz: 43.2
2150MHz: 48.4
2400MHz: 50.5
3000MHz: 56.5
RETURN LOSS 5-470 MHz: >20
470-862MHz: >18
862-2150MHz: >16
SCREENING EFFICIENCY: >80.0
