CXT-1 17 VAtC.A coaxial cable
Coaxial cable with copper-clad steel inner conductor and aluminium braid (CCS/Al), and an excellent braid coverage (77%). A 17 VAtC.A cable with double shielded and PVC sheath.
Main features:
- White-colour external PVC sheath
- 75 Ohm characteristic impedance
- Available in reels of different lengths
- Copper-clad steel inner conductor and aluminium braid
- Eca Euroclass
Discover:
Double-shielded Class B coaxial cable
They provide two shielding layers and belong in EN 50117 standard Class B, according to their structural properties:
- For 5 MHz - 30 MHz => TI < 15 mΩ/m
- For 5 MHz - 1000 MHz => SA > 75 dB
- For 1000 MHz - 2000 MHz => SA > 65 dB
- For 2000 MHz - 3000 MHz => SA > 55 dB
Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

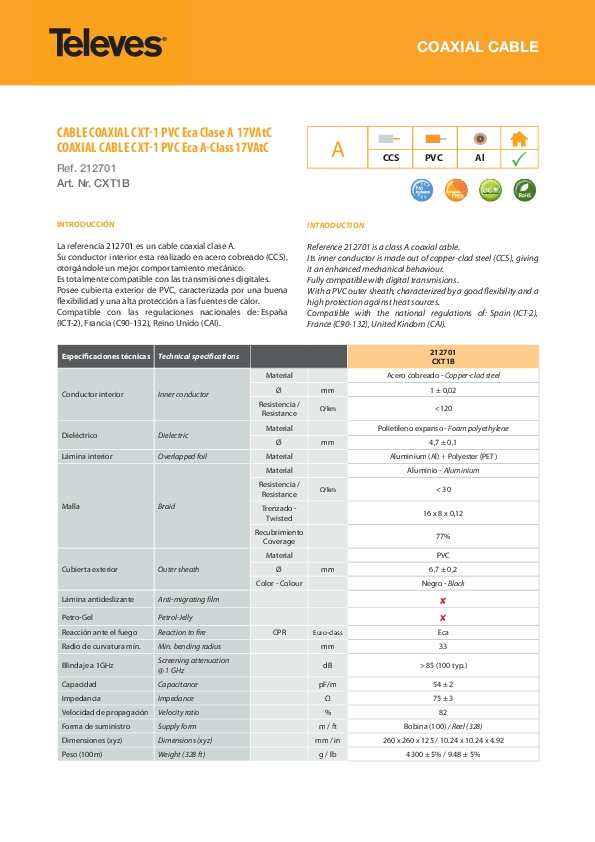

Type: CXT-1
EuroClass: Eca
Inner conductor
Ø mm: 1,13
Material: CCS
Res. Ohm/Km: <120
Dielectric
Ø mm: 4,7
Material: PEE
Overlapped foil: Aluminium + Polyester
Braid
Material: Al
Dimensions (Ncx Nsx Ø): 16 x 8 x 0,12
Res. Ohm/Km: <30
Coverage %: 77
Anti-migrating film: No
Petrol-Jelly: No
Outer sheath Ø (m): 6,7 Material: PVC
Minimum bending radius (mm): 33
Screening attenuation @ 1GHz (dB): >85
Capacitance (pF/m): 54
Impedance (Ohm): 75
Velocity ratio (%): 82
Attenuations (dB/m)
Frequency (MHz)
5: 0,03
47: 0,05
90: 0,06
200: 0,09
500: 0,15
800: 0,17
1000: 0,23
1350: 0,27
1750: 0,32
2050: 0,35
2300: 0,37
