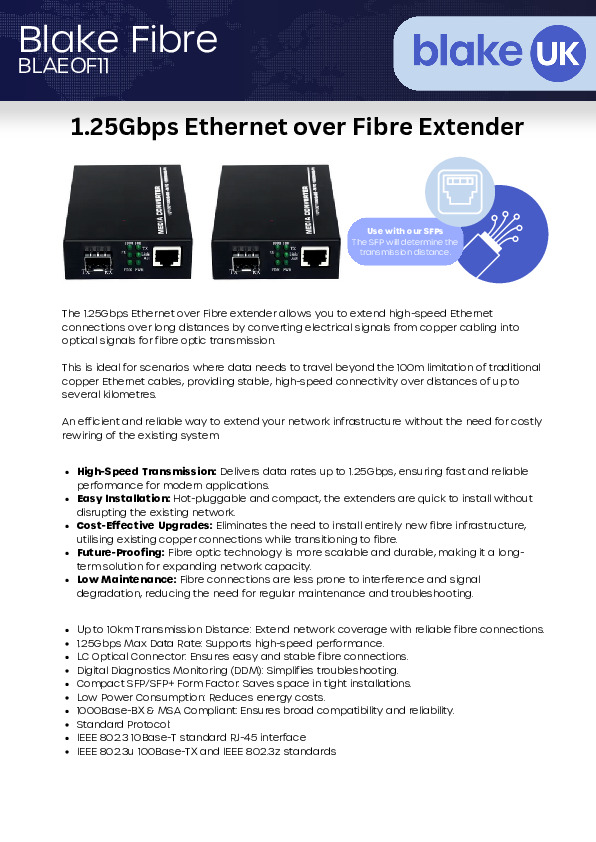

The BLAEOF11 Ethernet Over Fibre Extender is an advanced fibre media converter designed to bridge the gap between copper-based network signals and fibre optic systems. Ideal for network expansions, it provides seamless translation of short-range electrical signals to long-range optical signals over a fibre optic connection.
Key Features:
- Compact and Versatile Design: Equipped with a Small Form-factor Pluggable (SFP) interface and LC optical connector, offering easy installation and compatibility with standard network configurations.
- High-Speed Data Transmission: Supports up to 1.25Gbps data rate, making it suitable for applications requiring fast and reliable data transfer.
- Extended Reach: Capable of reaching distances of up to 10 kilometres over fibre, ensuring network coverage across large areas.
- Low Power Consumption: Efficient design with less than 5W power consumption.
- Robust Compatibility: Supports 1000Base-BX Ethernet and MSA compliance, with built-in diagnostics for ease of monitoring and maintenance.
- Hot-Pluggable and Dual Mode Support: Enables seamless switching and supports multi-mode and single-mode fibre, allowing for flexibility in setup.
Specifications:
- Transmission Rate: 1000Mbps
- Connector Types: LC fibre (fibre), RJ-45 (copper)
- LED Indicators:
- 1000M / 100M: Shows current link speed.
- FX Link/ACT: Fibre connection status.
- TX Link/ACT: RJ-45 connection status.
- PWR: Power indicator.
- FDX: Full-duplex mode indicator.
- Compatibility: Works with Windows (98 to 11), Mac OS, and Linux.
- Power Requirement: DC 5V 1A
- Operating Temperature: 0 - 70°C
- Security: 128-bit AES encryption for data protection.
Installation and Connection:
Connect your network device to the BLAEOF11 through the RJ-45 interface using CAT5 twisted-pair cables (up to 100 metres). The fibre optic connection is established via the SC/ST fibre interface in duplex mode, ensuring optimal data transfer and link stability.
Troubleshooting and Diagnostics:
LED indicators allow for quick diagnostics:
- 1000M: Lit for a 1Gbps connection.
- PWR: Illuminated when powered.
- FX Link/ACT and TX Link/ACT: Show link integrity and data activity.
For issues with connectivity, confirm power supply, inspect cables, and ensure fibre alignment.
