CAT6a F/UTP CABLE
The Kordz ONE Series CAT6a cable has been designed and engineered to provide a cable system infrastructure with assurance for advanced applications that demand more bandwidth and greater performance. This makes for a more robust and complex system at Gigabit speed and full duplex transmissions. This premium shielded twisted pair (F/UTP) cable with grounding, provides industry-leading protection inherent in complex systems from external cable noise sources, also known as alien crosstalk or EMI (electromagnetic interference).The new smaller and more compact Rapid-EZ-Reel packaging allows the easy flow of cable from the box, whilst keeping the cable from twisting and curling, greatly minimising snags during installation therefore saving precious time.
Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE & PoE+
F/UTP Ethernet CAT6a
Four Twisted Pairs 23 AWG Solid Copper Conductors
PVC Separator Reduces Crosstalk Between Pairs
Mylar laminated aluminium tape shielding with a 26AWG drain wire
Suitable for IDC Terminations
Supplied in the durable Rapid-EZ-Reel packaging – 152.5m (500ft)
Metre Marked
5 colours available: Blue, Green, White, Yellow & Purple
Exceeds ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards
Available in LSZH - IEC60332-3-25 and UL 444 CM fire rated versions
CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014+A1:2016)

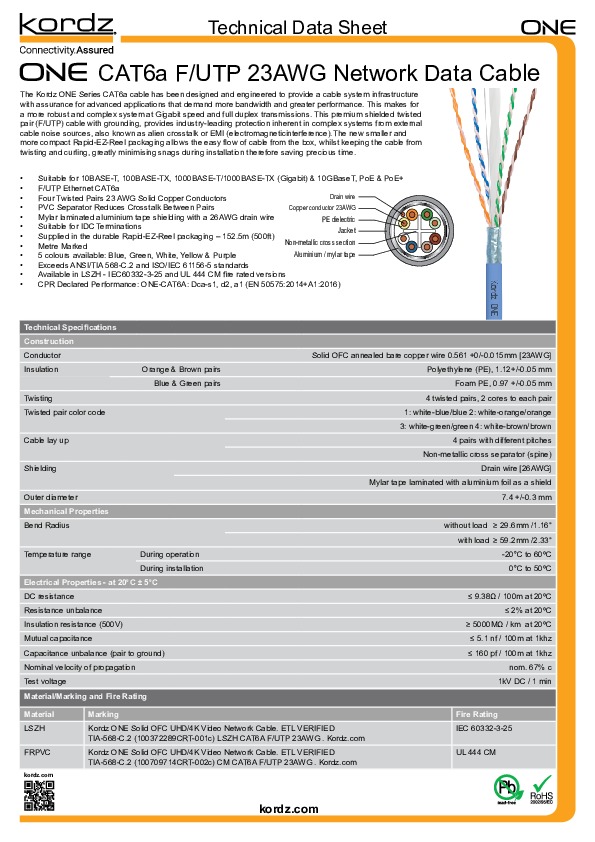

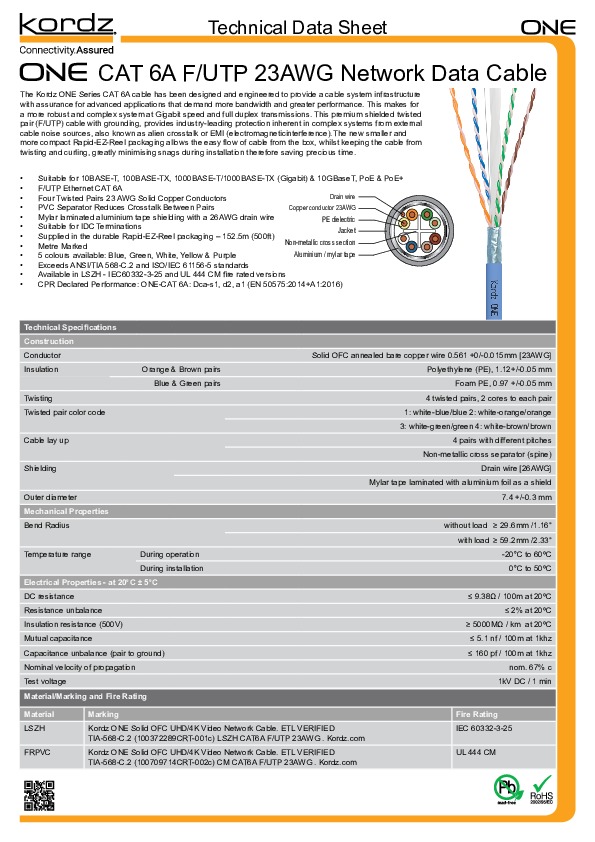

TECHNICAL SPECIFICATIONS
CONSTRUCTION
Conductor: Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]
Insulation: Orange & Brown Pairs - Polyethylene (PE), 1.12+/-0.05 mm Blue & Green Pairs - Foam PE, 0.97 +/-0.05 mm
Twisting: 4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 - white-blue/blue, 2 - white-orange/orange, 3 - white-green/green, 4 - white-brown/brown
Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
Shielding: Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
Outer Diameter: 7.4 +/-0.3 mm
MECHANICAL
Bend Radius: without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC
ELECTRICAL
DC Resistance: ≤ 9.38Ω / 100m at 20ºC
Resistance Unbalance: ≤ 2% at 20ºC
Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
Mutual Capacitance: ≤ 5.1 nf / 100m at 1khz
Capacitance Unbalance (pair to ground): ≤ 160 pf / 100m at 1khz
Nominal Velocity of Propagation: nom. 67% c
Test Voltage: 1kV DC / 1 min
