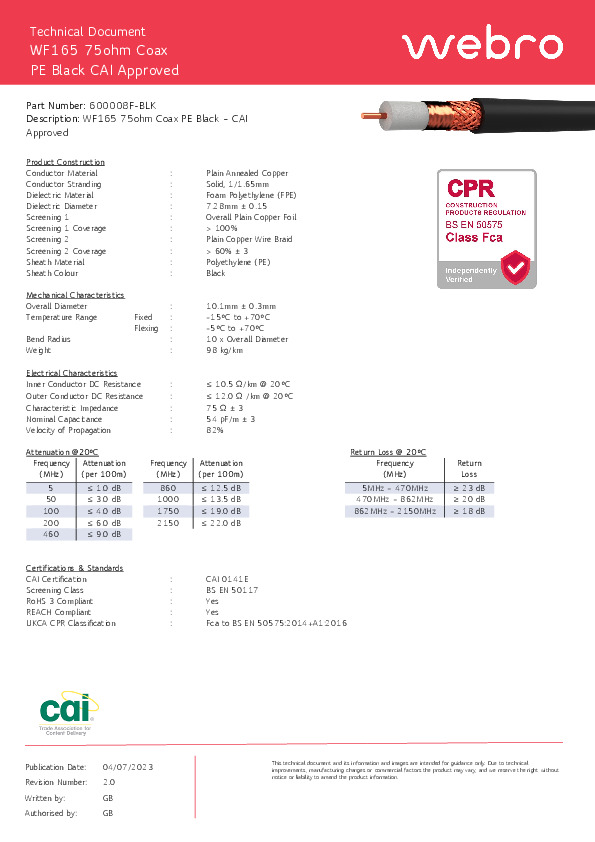

Product Construction
Conductor Material: Plain Annealed Copper
Conductor Stranding: Solid, 1/1.65mm
Dielectric Material: Foam Polyethylene (FPE)
Dielectric Diameter: 7.28mm ± 0.15
Screening 1: Overall Plain Copper Foil
Screening 1 Coverage: > 100%
Screening 2: Plain Copper Wire Braid
Screening 2 Coverage: > 60% ± 3
Sheath Material: Polyethylene (PE)
Sheath Colour: Black
Mechanical Characteristics
Overall Diameter: 10.1mm ± 0.3mm
Temperature Range: Fixed -15°C to +70°C / Flexing -5°C to +70°C
Bend Radius: 10 x Overall Diameter
Weight: 98 kg/km
Electrical Characteristics
Inner Conductor DC Resistance: ≤ 10.5 Ω/km @ 20°C
Outer Conductor DC Resistance: ≤ 12.0 Ω /km @ 20°C
Characteristic Impedance: 75 Ω ± 3
Nominal Capacitance: 54 pF/m ± 3
Velocity of Propagation: 82%
Attenuation @ 20°C
Frequency (MHz) / Attenuation (per 100m)
5 / ≤ 1.0 dB
50 / ≤ 3.0 dB
100 / ≤ 4.0 dB
200 / ≤ 6.0 dB
460 / ≤ 9.0 dB
860 / ≤ 12.5 dB
1000 / ≤ 13.5 dB
1750 / ≤ 19.0 dB
2150 / ≤ 22.0 dB
Return Loss @ 20°C
Frequency (MHz) / Attenuation (per 100m)
5MHz–470MHz / ≥ 23 dB
470MHz–862MHz / ≥ 20 dB
862MHz–2150MHz / ≥ 18 dB
Certifications & Standards
CAI Certification: CAI 0141E
Screening Class: BS EN 50117
RoHS 3 Compliant: Yes
REACH Compliant: Yes
UKCA CPR Classification: Fca to BS EN 50575:2014+A1:2016
