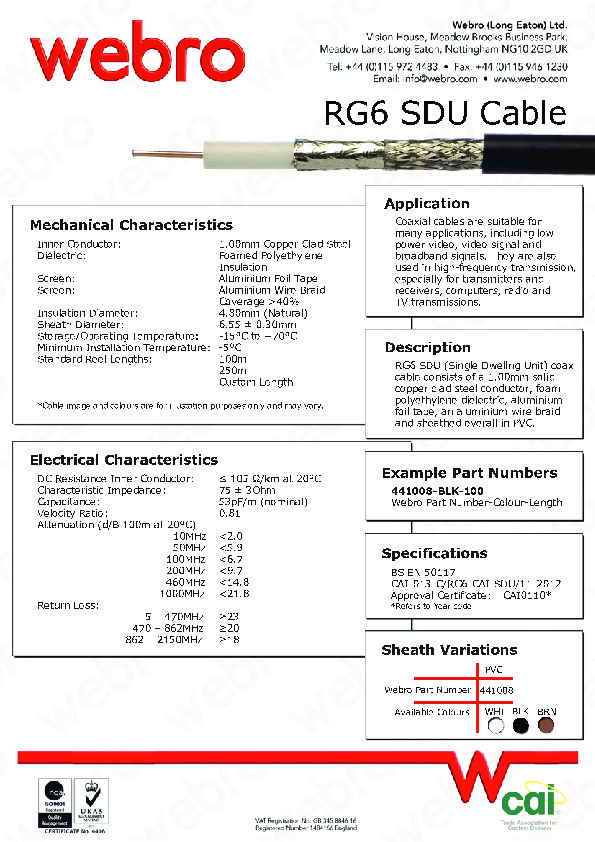

The RG6 SDU is designed for SDU DTT Installation and not Satellite or Distribution Systems. Webro's RG6 SDU cable is a CAI approved RG6 cable. The CAI-approval scheme is designed to reassure installers and users that the cable they use is fit for purpose. Cable testing is carried out by an independent test-house, and approved cable is also subject to random spot checks to ensure quality is being maintained.
RG6 SDU (Single Dwellng Unit) coax cable consists of a 1.00mm solid copper clad steel conductor, foam polyethylene dielectric, aluminium foil tape, an aluminium wire braid and sheathed overall in PVC.
RG6 SDU (Single Dwelling Unit) is suitable for SDU DTT Installation and not Satellite or Distribution Systems. Webro's RG6 SDU cable is a CAI-approved RG6 cable.
CONSTRUCTION
Inner conductor: 1.0mm Copper-Clad Steel
Dielectric: Foamed Polyethylene Insulation
Screen: Aluminium Wire Braid, Coverage >40%
Screen: Aluminium Foil Tape
Sheath: PVC sheath
MECHANICAL CHARACTERISTICS
Insulation diameter: 4.80mm (Natural)
Sheath diameter: 6.55 + 0.30mm
Cable: Storage/operating temperature: -15°C to +70°C
Cable: Minimum installation temperature: -5 °C
ELECTRICAL CHARACTERISTICS
DC Resistance Inner Conductor: ≤ 105 Ω/km at 20°C
Characteristic Impedance: 75 ± 3Ohm
Capacitance: 53pF/m (nominal)
Velocity Ratio: 0.81
Attenuation (d/B 100m at 20°C)
10MHz <2.0
50MHz <5.9
100MHz <6.7
200MHz <9.7
460MHz <14.8
1000MHz <21.8
Return Loss:
5 - 470MHz ≥23
470 - 862MHz ≥20
862 - 2150MHz ≥18
