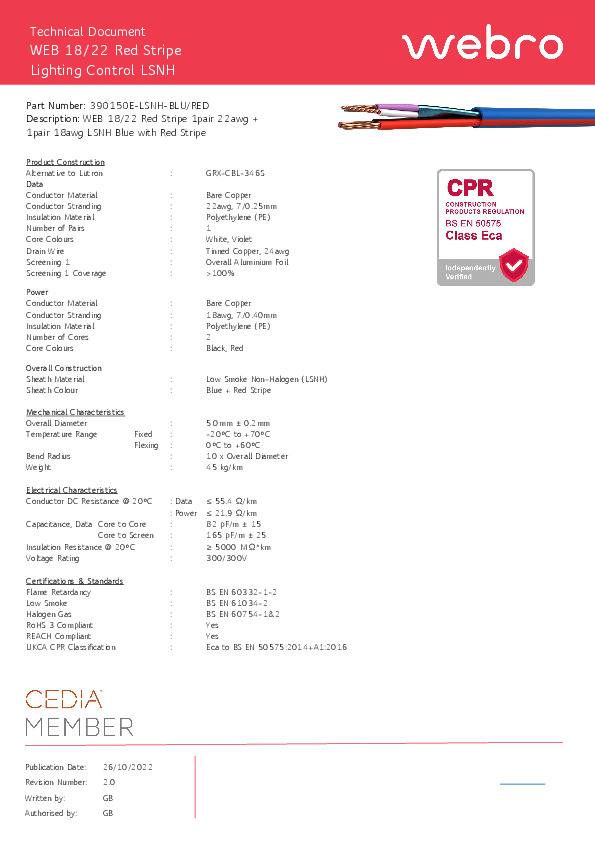

Lighting control cable suitable for many lighting control systems, including Lutron. This cable can also be used in any application where
a data and power composite with an LSZH overall jacket is required.
Contains 1 pair data wire (22AWG), and 2 power cores (18AWG). Data component consists of bare copper conductor, PE insulation, Ap shield and tinned copper drain wire. Power cores each consist of bare copper conductor, and PE insulation. Cable overall sheathing is LSZH.
Construction:
1 Pair Data Wire
* AWG:22
* Inner Conductor: 0.254*7 Bare Copper
* Insulation: PE
* Shield: Ap
* Drain Wire: 0.2*7 Tinned Copper
2 Core Power Wire
* AWG: 18
* Inner Conductor: 0.404*7 Bare Copper
* Insulation: PE
Overall
* Wrapping: PET
* Sheath: LSZH (Blue With Red Stripe)
* Thickness: 0.54+/-0.2mm
* Overall Diameter: 5.3 +/-0.2mm
Electrical Characteristics
Max. Conductor DC Resistance:
* 22AWG 55.4Ω/km
* 18AWG 21.9Ω/km
Dielectric Strength Between Pairs: DC 1.0kV/min.
