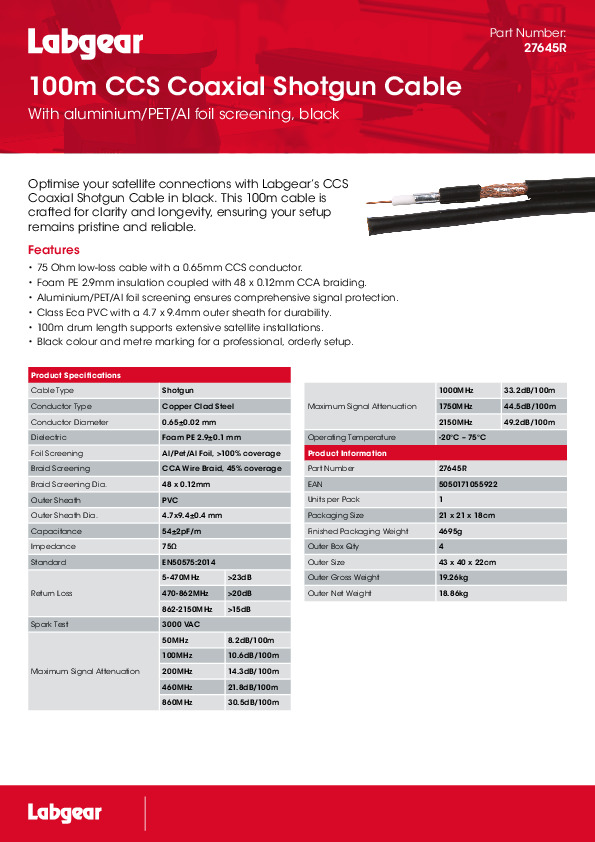

Labgear’s Shotgun CCS Cable is a high-performance, 100m black cable designed for satellite installations, offering exceptional signal integrity with robust construction and shielding.
- 75 Ohm low-loss cable with a 0.65mm CCS conductor.
- Foam PE 2.9mm insulation coupled with 48 x 0.12mm CCA braiding.
- Aluminium/PET/AI foil screening ensures comprehensive signal protection.
- Class Eca PVC with a 4.7 x 9.4mm outer sheath for durability.
- 100m drum length supports extensive satellite installations.
- Black colour and metre marking for a professional, orderly setup.
| Cable Type | Shotgun |
| Pack Length | 100 Metre |
| Colour | Black |
| Construction | |
| Conductor Type | Copper Clad Steel |
| Conductor Diameter | 0.65±0.02 mm |
| Dielectric | Foam PE 2.9±0.1 mm |
| Foil Screening | Al/Pet/Al Foil, >100% coverage |
| Braid Screening | CCA Wire Braid, 45% coverage |
| Braid Screening Diameter | 4160.12±0.01 mm |
| Jacket | PVC |
| Jacket Outer Diameter | (4.7×9.4)±0.4 mm |
| Electrical Characteristics | |
| Capacitance | 54±2 pF/m |
| Impedance | 75Ω |
| Velocity of Propagation | 84% |
| Standard | EN50575:2014 |
| Return Loss | |
| 5-30MHz | >23 dB |
| 30-470MHz | >23 dB |
| 470-862MHz | >20 dB |
| 862-2150MHz | >15 dB |
| Spark Test | 3000 VAC |
| Operating Temperature Range | -20 to 75 ℃ |
| Signal Attenuation (20 ℃) | |
| Frequency (MHz) | Max Attenuation (dB/100m) |
| 50 | 8.2 |
| 100 | 10.6 |
| 200 | 14.3 |
| 460 | 21.8 |
| 860 | 30.5 |
| 1000 | 33.2 |
| 1750 | 44.5 |
| 2150 | 49.2 |
